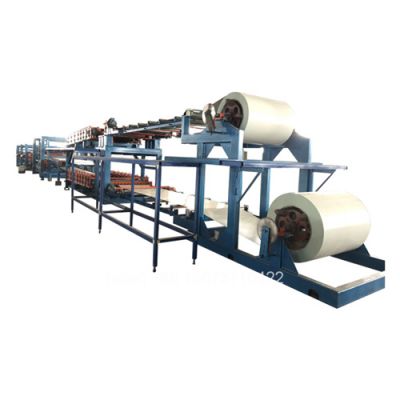

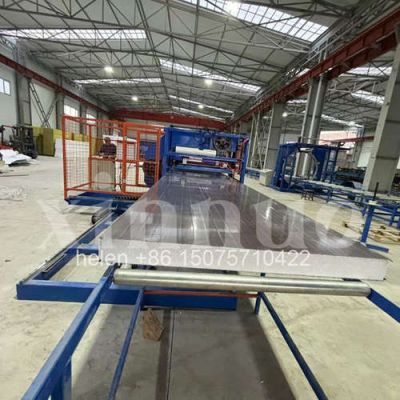

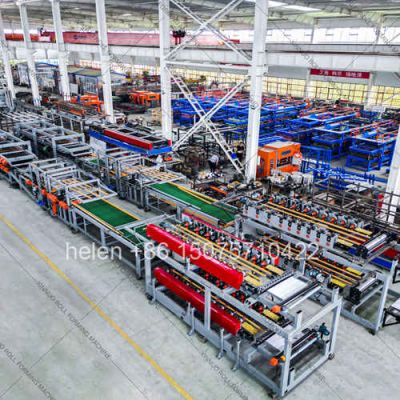

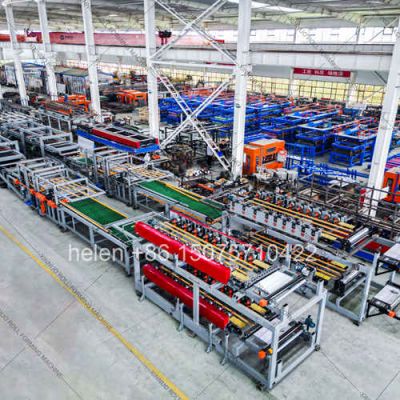

This fully automatic sandwich panel production line integrates dual decoilers, upper and lower roll forming units, glue injection or core-material feeding, heated lamination pressing, and automatic cutoff into one continuous system. It transforms color-coated steel coils into finished insulated composite panels — ready for cold storage warehouses, cleanroom partitions, prefabricated steel buildings, and industrial roofing and wall cladding applications. The machine accommodates three core insulation types: EPS expanded polystyrene foam, PU polyurethane rigid foam, and mineral rock wool fiber, with a quick-change configuration to switch between materials.
| Effective Panel Width | 950 mm / 970 mm / 1000 mm / 1050 mm / 1120 mm |
| Feeding Coil Width | 1200 mm (standard), 1220 / 1250 mm (optional) |
| Steel Thickness Range | 0.3 – 0.8 mm (top skin), 0.3 – 0.6 mm (bottom skin) |
| Panel Core Material | EPS foam / PU rigid foam / Rock wool (fire-rated) |
| Panel Joint Type | Lap joint / Concealed cap / Self-locking / S-lock |
| Forming Rows | 14 rows (upper unit) + 14 rows (lower unit) |
| Frame Material | 300H steel welded frame (350H for wide panels) |
| Shaft Diameter | Φ70 mm, heat-treated 45# steel |
| Mid-Plate Thickness | 14 mm (standard) |
| Glue Roller Section | 54 precision rubber-coated rollers, CNC-machined 12-meter bed |
| Lamination Press Zone | Patented one-way steel belt anti-shift pressing system |
| Glue System | Dual glue pumps with uniform flow control |
| Cutting System | Automatic flying cutoff saw, PLC servo length control |
| Main Motor Power | 3 – 4 KW per drive unit |
| Chain Drive | 6-Fen single-row chain (standard), double-row (dual-layer models) |
| Control System | PLC touchscreen, preset batch count, fault self-diagnosis |
| Full Line Length | 50 – 65 m (S-lock configuration), 35 – 45 m (standard lap-joint) |
| Production Speed | 2 – 8 m/min (depending on core material and panel thickness) |
| Panel Type | Effective Width | Peak Count | Joint Style | Core Material |
|---|---|---|---|---|
| Standard Roof Panel | 950 mm | 3 peaks | Lap joint | EPS / PU / Rock wool |
| Standard Wall Panel | 1000 mm | 5 peaks | Concealed cap | EPS / PU / Rock wool |
| Wide Wall Panel | 1050 – 1120 mm | 5 – 6 peaks | Self-locking | EPS / PU |
| Cold Storage Panel | 970 mm | Flat / micro-rib | S-lock (cam-lock) | PU / Rock wool |
| Cleanroom Panel | 1000 mm | Flat surface | S-lock | Rock wool / PU |
| Container / Modular | 1050 mm | Flat bottom plate | Tongue & groove | EPS / Rock wool |
| 54-Roller Glue Bed | Longer contact zone than standard 32–40 roller designs; stronger panel bonding and zero delamination guarantee |
| One-Way Steel Belt Press | Patented anti-shift technology keeps core material perfectly centered during continuous lamination |
| Dual Glue Pump System | Consistent adhesive flow to both upper and lower skins simultaneously — no starvation, no excess waste |
| Shot-Blast & Electrostatic Coating | Frame and structural components surface-treated for corrosion resistance in humid or coastal environments |
| Quick Core Material Change | EPS → PU → Rock wool switchover in under one shift; modular feeding and injection sections |
| Self-Programmed PLC | Remote fault diagnosis via video call; zero third-party software dependency means zero license fees |
| Pre-Assembly Factory Testing | Every machine is fully assembled and test-run before packing; real panel samples provided with each shipment |
Hebei Xinnuo is a professional cold roll forming machinery manufacturer with 20+ years of experience. We specialize in C/Z purlin machines, roof panel roll formers, floor deck machines, and custom profile solutions — exported to 50+ countries worldwide.
