- Complete C Z CZ CZU purlin roll forming machine solutions
- Servo-driven automatic production line with multi-profile switching
- 16-26 station heavy archway frame with CNC precision machining
- Flying or hydraulic shear system for cut-to-length operation
- Touchscreen HMI saves 50+ profile recipes with one-touch recall
- Processes 1.0-5.0mm galvanized and high-strength structural steel
- Single machine produces C Z U channels without die changes

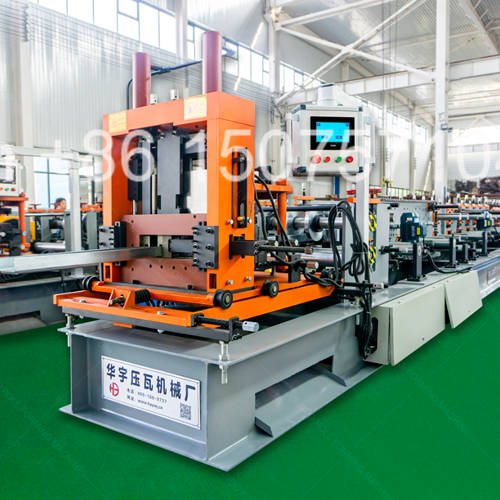

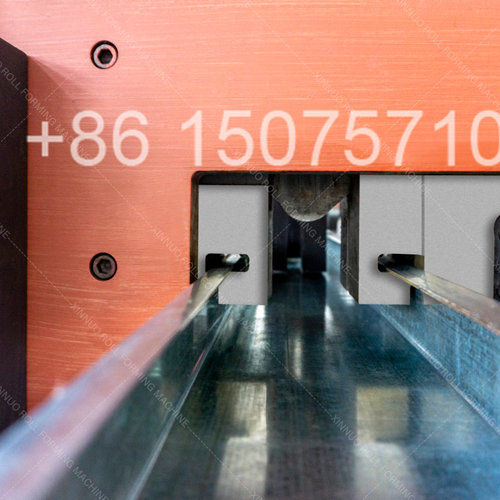

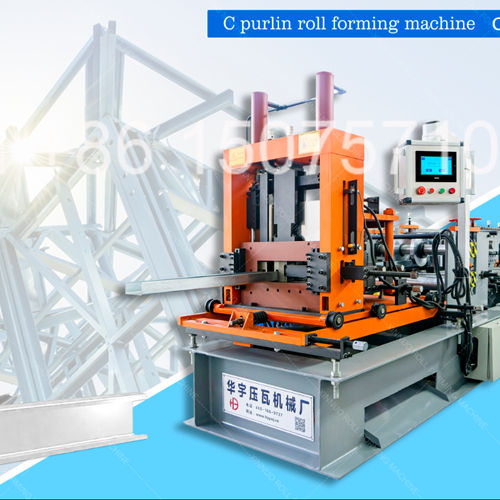

This automatic purlin machine is a complete cold roll forming production line designed to manufacture the full spectrum of structural steel purlins — C purlins, Z purlins, CZ-integrated switching, and CZU all-in-one profiles — from a single heavy-duty platform. The machine serves as the backbone equipment for steel structure factories supplying pre-engineered building systems, industrial workshops, warehouse frames, and solar farm mounting structures. With a rigid archway frame machined to 0.05mm flatness and fully automatic servo-driven adjustment across all four profile dimensions, operators can switch between multiple purlin types and sizes in under one minute without mechanical tool changes.

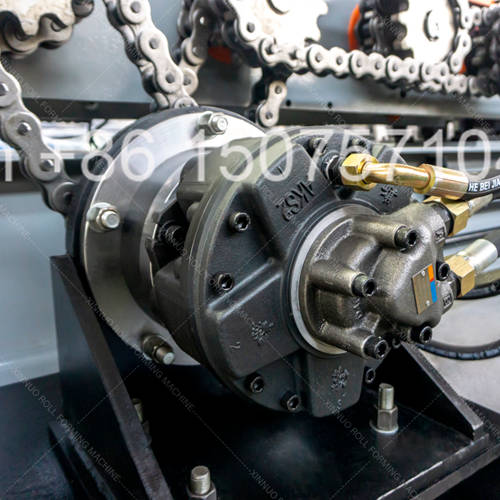

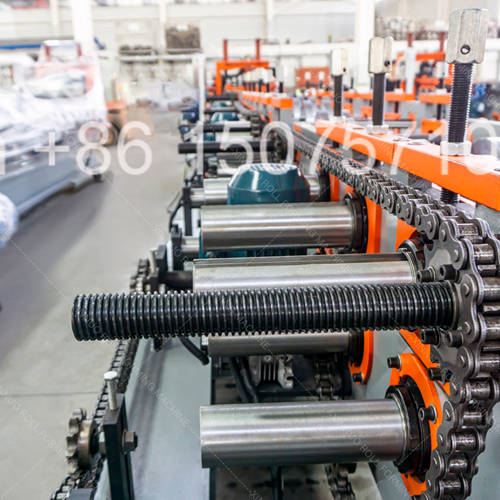

| Tier | Machine Type | Profile Types | Key Specs | Target Customer |
|---|---|---|---|---|
| Entry | Manual C Purlin Machine | C only | 12-14 rows, 300H frame, Φ65-75 shaft | Small local factory, single-size production |
| Mid-Range | Computer C Purlin Machine | C only | 15-18 rows, 350-400H frame, Φ80-95 shaft | Medium factory, multi-size batch production |
| Advanced | Full-Auto CZ Integrated | C + Z switching | 16-20 rows, 400-450H archway, Φ90-100 shaft, servo | Export-oriented, dual-profile demand |
| Flagship | Full-Auto CZU Integrated | C + Z + U switching | 24-26 rows, 400-500H archway, Φ95-120 shaft, 30-55KW servo | High-volume export, full product range |
| Parameter | Value |
|---|---|
| Profile Type | C-shaped steel purlin / channel |
| Forming Stations | 15-18 rows progressive forming |
| Frame Design | 350H-400H welded steel, CNC machined base |
| Shaft Diameter | Φ80-95mm, 40Cr alloy, chrome plated |
| Main Drive | Hydraulic motor or 15-22KW gear motor with VFD |
| Chain Drive | 2-inch heavy-duty roller chain |
| Shear System | Hydraulic stop-cut or non-stop flying shear (optional) |
| Control Interface | PLC with 10-inch touchscreen HMI |
| Profile Range | Width 75-300mm, Height 40-80mm, Lip 10-20mm |
| Thickness Capacity | 1.0-2.5mm galvanized or cold-rolled steel |
| Machine Weight | Approximately 9.5-10 tons |
| Parameter | Value |
|---|---|
| Profile Types | C purlin + Z purlin, automatic switching |
| Forming Stations | 16-20 rows progressive forming |
| Frame Design | 400H-450H archway (牌坊式), 40mm plates with ribs |
| Shaft Diameter | Φ90-100mm, 40Cr alloy, hard chrome finish |
| Main Drive | 22-30KW servo motor, precision speed and position control |
| Chain Drive | 2-inch and 2.5-inch dual specification |
| Shear System | Single-knife gapless shear, all sizes one blade |
| Control Interface | Self-developed PLC, 10-inch color touchscreen |
| Profile Range | C: 80-300mm wide / Z: 80-300mm wide × 40-100mm high |
| Thickness Capacity | 1.0-3.0mm galvanized or structural steel |
| Machine Weight | Approximately 12 tons |
| Machine Type | Width (W) | Height (H) | Lip (L) | Max Thickness | Adjustment Method |
|---|---|---|---|---|---|
| Manual C Purlin | 50-200 mm | 29-70 mm | 10-20 mm | 1.5 mm | Manual handwheel |
| Computer C Purlin | 75-300 mm | 40-80 mm | 10-20 mm | 2.5 mm | HMI + encoder motor |
| CZ Integrated | 80-300 mm | 40-100 mm | 10-30 mm | 3.0 mm | Servo motor auto |
| CZU Flagship | 80-400 mm | 40-127 mm | 10-30 mm | 3.0-5.0 mm | Servo full auto |
| Shear Type | Operation Mode | Accuracy | Efficiency | Price Signal | Recommended For |
|---|---|---|---|---|---|
| Hydraulic Stop-Cut | Line pauses each cut cycle | ±2-3 mm | ~85% output | Base price | Standard production, mixed batch sizes |
| Non-Stop Flying Shear | Continuous line, shear travels with material | ±0.5-1 mm | ~98% output | +$2,000-4,000 | High volume orders, tight length tolerance |
| Servo Flying Shear | Continuous, servo-driven cutter carriage | ±0.3-0.5 mm | ~99% output | +$4,000-6,000 | Export-grade, automated stacking integration |
| No. | Component | Function | Dimension |
|---|---|---|---|
| 1 | Hydraulic Decoiler | Coil loading and controlled feeding | 1,100-1,650 mm width |
| 2 | Leveling & Feed Guide | Strip flattening and edge alignment | 3,500 mm length |
| 3 | Pre-Punch Station | Hole punching before forming section | Integrated in feed zone |
| 4 | Main Forming Unit | Progressive roller forming of profile shape | 8,950-11,800 mm |
| 5 | Straightening Section | Final sizing and camber correction | Integrated in forming |
| 6 | Hydraulic Shear | Cut-to-length with programmable controller | Integrated in forming |
| 7 | Run-Out Conveyor ×2 | Finished purlin collection and stacking | 3,000 × 2 mm |
| 8 | PLC Control Cabinet | Central control, recipe storage, diagnostics | Standalone floor unit |
| 9 | Hydraulic Power Pack | Pressure supply for shear and punch circuits | Under-mounted enclosure |
| Machine Type | Line Length | Width Clearance | Minimum Workshop |
|---|---|---|---|
| Manual C Purlin | ~17.0 m | 2.5 m | 19 m × 4.5 m |
| Computer C Purlin | ~19.6 m | 3.0 m | 22 m × 5.0 m |
| CZ Integrated | ~22.9 m | 2.8-3.0 m | 25 m × 5.0 m |
| CZU Flagship | ~22.5 m | 3.5 m | 25 m × 5.5 m |
| C + Auto Stacker | ~24.0 m | 3.0 m | 26 m × 5.0 m |
