Competitive factory price double layer roof sheet forming machine
Single investment covers IBR and corrugated roof panel production
Cost approximately thirty to forty percent less than two separate machines
Hydraulic flying shear and PLC control included in standard pricing
Price varies by profile width roller count motor power and PLC brand
Request quotation with your roof sheet specifications for exact pricing
Twenty five to thirty five day production lead time from deposit receipt
This page provides detailed information about the pricing structure of the double layer IBR and corrugated roof sheet roll forming machine. Designed as a cost-effective solution for manufacturers who need to produce both IBR trapezoidal roof panels and traditional corrugated roof sheets, this machine consolidates two complete production capabilities into a single frame — delivering substantial savings on equipment purchase price, workshop space, shipping expense, and ongoing operational costs compared to buying two dedicated single-profile machines.
| Price Factor | Lower Cost Configuration | Higher Cost Configuration | Impact on Price |
|---|---|---|---|
| IBR Profile Width | 762mm or 840mm effective cover | 1050mm or 1100mm effective cover | Wider panels require larger rollers and longer shafts, increasing material and machining cost |
| Corrugated Profile Width | 660mm or 750mm effective cover | 900mm or 1000mm effective cover | Broader wave sheets need additional roller stations and wider frame construction |
| Roller Station Count (IBR) | 14 rows | 18 rows | Each additional row adds one roller pair, shaft, bearings, and sprocket — approximately 3–5% price increase per 2 rows |
| Roller Station Count (Corrugated) | 13 rows | 16 rows | Same principle as above; more stations improve forming quality but increase material cost |
| Main Motor Power | 5.5kW | 7.5kW or servo motor | Higher motor rating costs more; servo adds approximately 15–25% to the base machine price |
| PLC Brand Selection | Delta DVP series | Siemens S7-1200 or Mitsubishi FX3U | European or Japanese PLC brands carry a premium over Asian alternatives |
| Frame Specification | 300H channel steel | 400H H-beam steel | Heavier frame increases structural rigidity and machine lifespan but requires more raw steel |
| Decoiler Capacity | 5-ton manual expansion | 8-ton hydraulic expansion with pneumatic brake | Larger decoiler with powered features increases total line cost |
| Included Item | Quantity | What You Get |
|---|---|---|
| Double Layer Main Machine Body | 1 unit | Complete upper IBR roller deck and lower corrugated roller deck on a single welded steel frame; includes chain drive system with hardened sprockets, fully enclosed safety guard covers, hydraulic post-cut flying shear unit, and PLC electrical control cabinet with touchscreen HMI |
| Hydraulic Coil Uncoiler | 1 unit | Manual or hydraulic expansion mandrel with disc or pneumatic brake; 5-ton or 8-ton load capacity as specified in the quotation |
| Material Entry Guide Table | 1 unit | Adjustable-width side alignment rollers with integrated manual guillotine pre-shear blade for trimming coil leading edges |
| Run-Out Roller Conveyor | 1 unit | 3m to 5m free-roller receiving table with height-adjustable support legs for ergonomic finished panel collection and stacking |
| Spare Wearing Parts Kit | 1 set | One Cr12MoV shear blade, 20 chain master links, 2 limit switches, 2 emergency stop pushbuttons, and one set of hydraulic cylinder seals and O-rings — included at no extra charge |
| Operator Tool Kit | 1 set | Basic hand tools for routine roller gap adjustment, chain tensioning, and daily lubrication maintenance |
| Technical Documentation Package | 1 set | Printed English-language operation manual, mechanical assembly drawings with exploded views, electrical wiring schematic, PLC parameter guide, and lubrication schedule chart |
| Cost Category | Two Separate Roof Sheet Machines | One Double Layer Roof Sheet Machine | Estimated Saving |
|---|---|---|---|
| Equipment Purchase Price | Full price of two machines + two decoilers | Approximately 65–75% of the two-machine total | 25–35% on hardware |
| Ocean Freight (to Africa example) | Two × 20GP containers at ~USD 2,500–4,000 each | One × 20GP or 40HQ container at ~USD 2,500–4,500 | 40–50% on shipping |
| Workshop Construction | Two foundation pads, two electrical installations | One foundation pad, one electrical installation | Approximately 50% on civil works |
| Monthly Electricity | Two motors + two hydraulic pumps running | One motor + one hydraulic pump | Approximately 40% on energy |
| Operator Wages | 3–4 workers across two lines | 1–2 workers per shift | 40–50% on labor |
| Spare Parts Inventory | Two complete sets of wearing parts in stock | One set covers both profiles | Approximately 50% on spares |
| Step | Information to Provide | Why It Matters for Pricing |
|---|---|---|
| 1 | IBR roof sheet cover width required (e.g. 840mm, 925mm, 1050mm) | Determines roller diameter, shaft length, and frame width — all material cost drivers |
| 2 | Corrugated sheet cover width and wave count (e.g. 750mm, 7 waves) | Sets the lower deck roller specification and station spacing requirements |
| 3 | Coil material type and thickness range you will process daily | Thicker and harder materials require higher motor power and possibly upgraded chain specification |
| 4 | Target daily or monthly production volume | High-volume operations may benefit from higher motor power and additional roller stations for faster speeds |
| 5 | PLC brand preference (Delta / Siemens / Mitsubishi) and voltage/frequency | PLC brand significantly affects the electrical system cost; voltage must match your factory supply |
| 6 | Destination port for shipping cost estimation | Freight cost varies greatly by destination and container type; we can provide an FOB or CIF quotation |
| Commercial Term | Standard Arrangement |
|---|---|
| Price Basis | FOB Tianjin or Qingdao port, China (buyer arranges ocean freight) or CIF destination port (seller arranges freight to buyer's nearest seaport) |
| Payment Structure | 30% deposit by T/T bank transfer upon order confirmation; 70% balance before shipment or against scanned copy of bill of lading |
| Production Lead Time | 25–35 working days from receipt of deposit and signed profile drawing approval |
| Warranty Period | 12 months from the date of shipment against manufacturing defects in materials and workmanship |
| Extended Warranty Option | 24-month extended warranty coverage available for an additional fee; covers parts replacement and remote technical diagnosis |
| On-Site Installation Service | Optional: factory-trained engineer travels to buyer's site for machine installation, commissioning, and operator training; buyer covers airfare, accommodation, and a daily service allowance |
| After-Sales Support | Free remote technical support via WhatsApp, WeChat, or Zoom video call during the warranty period and beyond |

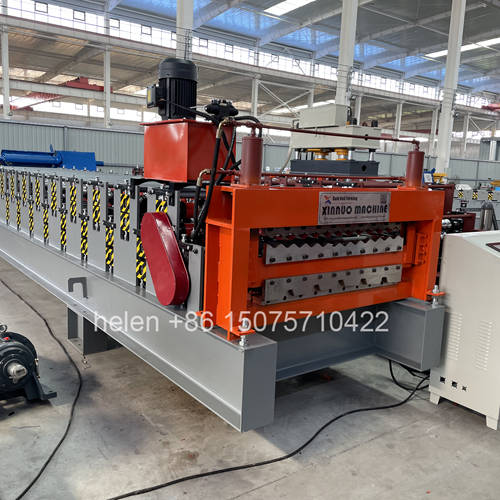

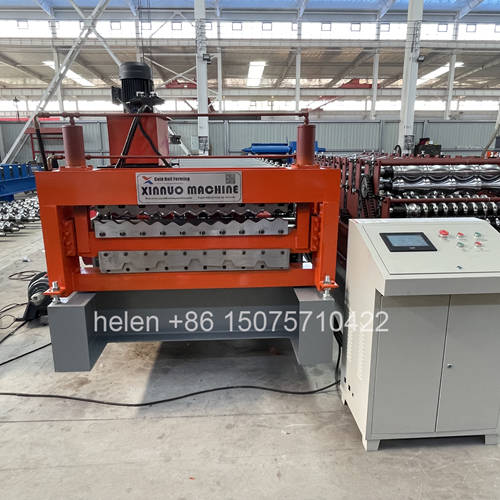

| Assembly Section | Material and Specification |
|---|---|
| Main Frame Structure | Welded heavy-gauge channel steel and H-beam sections (300H–400H grade); undergoes post-weld thermal stress-relief annealing for dimensional stability under sustained production loads |
| Upper Deck (IBR) Rollers | 14–18 pairs of CNC contour-turned 45# forged steel rollers, case hardened to HRC 58–62, hard chrome plated to minimum 0.05mm deposit thickness; mounted on Φ75–Φ80mm 40Cr alloy steel shafts with double-row self-aligning pillow block bearings |
| Lower Deck (Corrugated) Rollers | 13–16 pairs of CNC wave-contour-turned 45# forged steel rollers, same hardening and chrome plating specification as upper deck; identical shaft and bearing configuration |
| Power Transmission | Single AC motor (5.5kW/7.5kW) → dual-output worm gear speed reducer (ratio 1:40 or 1:59) → two independent heavy-duty double-row roller chain loops with hardened alloy steel sprockets; each chain loop has its own tension adjustment mechanism |
| Hydraulic Cutting Unit | 4.0kW motor-driven gear pump, 80L reservoir with oil cooler, 16–21 MPa working pressure; flying shear carriage with Cr12MoV alloy blade (HRC 60–64); pneumatic sheet clamp; cut cycle under 2 seconds |
| Electrical Control System | PLC processor (Siemens/Delta/Mitsubishi), VFD inverter for stepless speed control, 7-inch or 10-inch color touchscreen HMI with multi-language interface, rotary encoder for length measurement, mechanical limit switches for carriage positioning, emergency stop circuit at three operator stations |
| Surface Finish | Industrial-grade enamel paint over anti-rust primer; standard machine color blue or gray (custom RAL color available on request at no additional charge) |

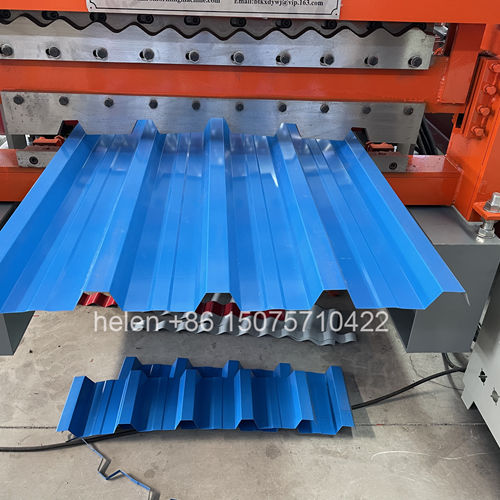

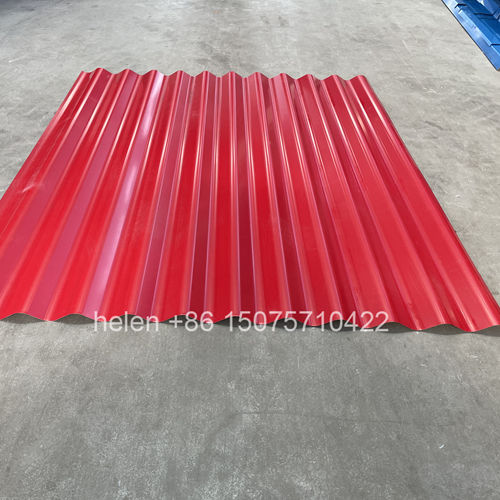

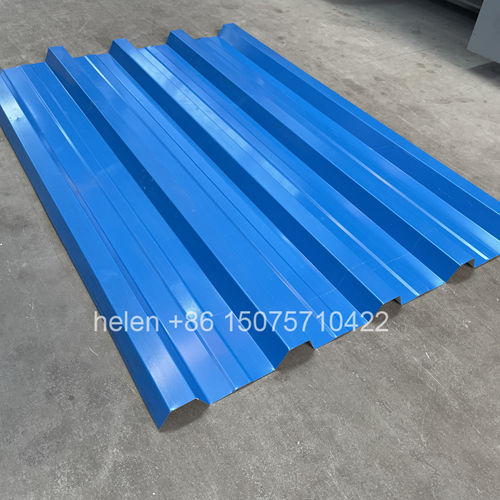

| Output Parameter | IBR Roof Panel | Corrugated Roof Panel |
|---|---|---|
| Effective Cover Width | 762mm to 1100mm | 660mm to 1000mm |
| Profile Depth | 28–43mm rib height | 12–18mm wave amplitude |
| Rib/Wave Quantity | 4, 5, or 6 ribs | 5, 7, 9, or 11 waves |
| Cut Length Range | 1.0m to 14.0m per panel | 1.0m to 14.0m per panel |
| Raw Material Input | 1000–1250mm wide flat coil | 914–1220mm wide flat coil |
| Material Gauges Processed | 0.25–0.80mm (gauge 30–20) | 0.25–0.80mm (gauge 30–20) |
| Applicable Coil Types | GI, PPGI, aluzinc, aluminum, cold-rolled steel | GI, PPGI, aluzinc, aluminum, cold-rolled steel |
| Operating Parameter | Standard Value |
|---|---|
| Production Line Speed | 10–18 meters per minute, stepless adjustable via VFD inverter control |
| Sheet Length Accuracy | ±1.0mm at any programmed length through rotary encoder feedback to PLC |
| Profile Changeover Time | Approximately 10–15 minutes including diverter plate repositioning and strip re-threading |
| Electrical Requirement | 380V 50Hz 3-phase standard; custom voltage (220V/415V/440V/480V) and frequency (50/60Hz) available |
| Total Installed Power | Approximately 10–12 kW (main drive motor + hydraulic pump combined) |
| Machine Dimensions (L×W×H) | Approximately 7.0–8.0m × 1.4–1.6m × 1.7–2.0m depending on profile configuration ordered |
| Machine Net Weight | 5.0–7.5 metric tons depending on roller station count and frame specification |
| Business Scenario | Calculation Basis | Estimated Payback |
|---|---|---|
| Startup roof sheet factory, single shift | Producing approx. 800–1,200 linear meters per day at competitive local market pricing | Machine pays for itself in 6–9 months of steady production |
| Existing factory adding second profile | Currently running one profile; adding IBR or corrugated capability opens a new customer segment without buying a second complete machine | Additional revenue from new profile type typically recovers the machine cost in 4–7 months |
| Import substitution model | Replacing imported finished roof sheets with locally manufactured panels using this machine | Local production cost is typically 30–50% below imported sheet prices; machine investment recovered in 3–5 months |
Before export packaging, each machine passes a comprehensive three-phase inspection. Phase one — mechanical verification: every roller gap is measured with calibrated feeler gauges against the engineering specification; shaft runout is checked with dial indicators at all bearing points; frame alignment is confirmed with precision spirit levels and laser instruments. Phase two — extended dry run: the machine operates continuously at full speed for a minimum of four hours; bearing temperatures are monitored and logged at 30-minute intervals; chain engagement is inspected visually and audibly; every PLC function is tested including start, stop, speed change, length programming, batch counting, and emergency stop. Phase three — live material trial: 50 IBR roof sheets and 50 corrugated roof sheets are produced from actual galvanized coil; every 10th panel is measured for length, rib geometry, wave pitch, and cut edge quality using calibrated digital instruments. Machines must pass all three phases with zero out-of-tolerance results before container loading.
The main machine receives three-layer protective packaging: VCI anti-rust film wrap, high-density foam padding at all corners and protrusions, and heavy-gauge UV-stabilized polyethylene outer shrink wrap. The wrapped unit is bolted to a fumigated ISPM-15 plywood pallet or welded steel skid. The hydraulic decoiler, run-out table, hydraulic power unit, and control cabinet are packed in separate marked fumigated wooden crates. A dedicated accessories crate holds the tool kit, spare parts starter pack, and printed technical manuals. All items load into a single 20GP or 40HQ container. From deposit receipt and profile drawing sign-off, production requires 25–35 working days. Ocean transit time varies by destination — typically 25–40 days to Africa, 15–25 days to Southeast Asia, 35–50 days to South America.
| Optional Feature | What It Does | Price Impact Guidance |
|---|---|---|
| Servo Motor Drive Upgrade | Programmable motion control with smoother starts, precise stops, and energy savings during idle cycles | Adds approximately 15–25% to the base machine price |
| Automatic Sheet Stacking System | Motorized stacking arm transfers finished panels from run-out table to pallet in neat aligned bundles | Adds approximately 8–12% to the line total |
| Motorized Coil Loading Car | Rail-guided electric cart with hydraulic lift; eliminates crane dependency for coil changes up to 10 tons | Priced separately as an accessory item |
| IoT Remote Monitoring Kit | 4G cellular module for real-time production tracking, fault alerts, and maintenance scheduling on smartphone | Small incremental cost; installation pre-wired at factory |
| Brand Embossing Roller Set | Custom-engraved roller station that embosses your company logo onto each panel during forming | One-time tooling charge for the custom engraving |
| Stainless Steel Roller Option | Full 304 or 316L stainless roller set for food-grade, marine, or chemical environment applications | Material upgrade cost; inquire for current stainless steel surcharge |
