Frustrated by sheet deformation, high material scrap, and complex settings? Our C20 IBR roof sheeting machine eliminates these headaches. Equipped with a manual pre-cutter to stop material waste and an intuitive PLC system, it empowers beginners to achieve flawless trapezoidal profiles, effortless mass production, and immediate market profitability.

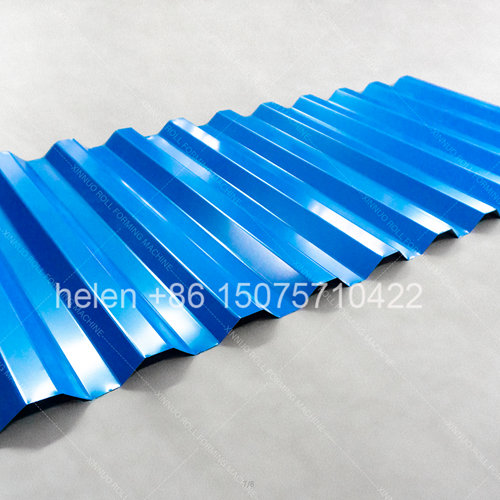

Hebei Xinnuo Roll Forming Machinery Co., Ltd. proudly presents the premier roll forming line designed for Central Asia's booming construction sector. Our high-performance C20 IBR roof sheeting machine for sale is explicitly engineered to fulfill the massive demand for classic C20 trapezoidal metal profile panels. Extensively utilized across Uzbekistan and surrounding global markets, this specialized corrugated panel machine transforms thin galvanized steel or PPGI coils into exceptionally durable structural profiles suitable for both heavy industrial structures and modern urban residential roofings.

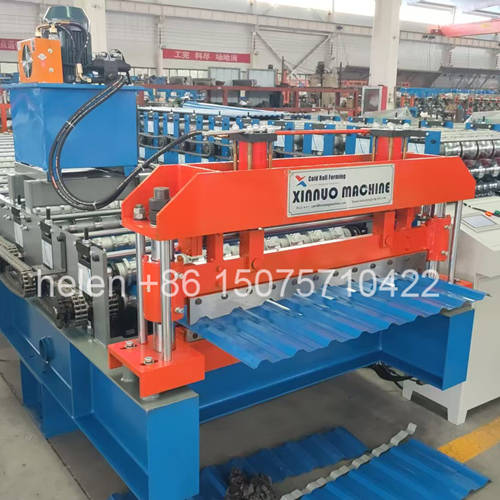

[SEO Image: Main body of the C20 IBR roofing sheet machine showcasing rigid welded frame structure]
This high-precision roll forming equipment utilizes an advanced structural setup to ensure smooth operations. Each individual roller station is manufactured via high-precision CNC toolings using premium 45# forged steel, followed by hard chrome plating. This thorough manufacturing technique prevents any unexpected scratches on pre-painted sheets during continuous deformation. Backed by an over-dimensioned solid shaft mechanism and continuous heavy chain drive, the machine processes steel raw sheets flawlessly, generating perfect structural geometry with zero distortion across the finished panel's width.

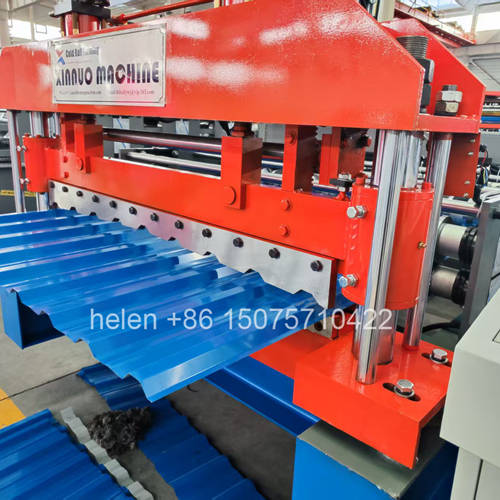

[SEO Image: Post-cut hydraulic shear section using premium heat-treated mold steel blade]
[SEO Image: Material entry guide with built-in manual pre-cutter to minimize raw sheet waste]

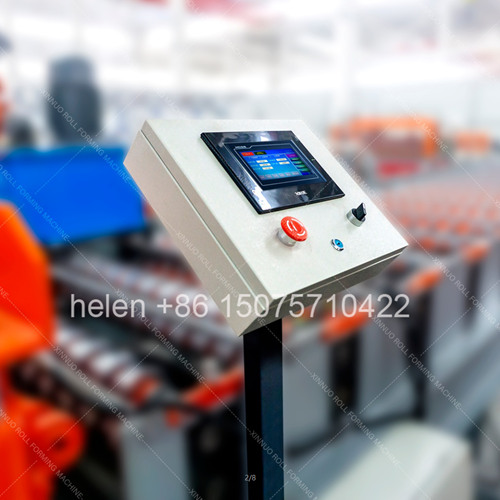

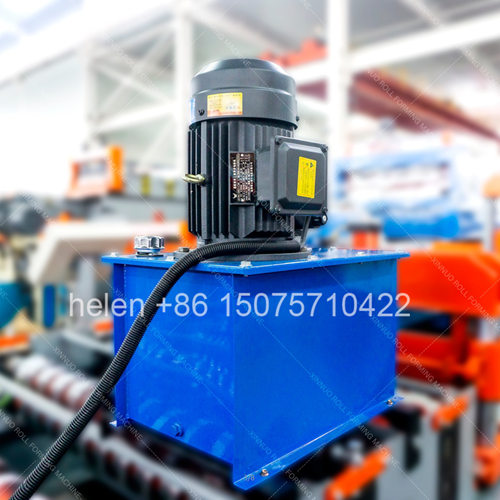

The entire line is synchronized seamlessly via an intellectual PLC automatic control unit supporting multiple languages (including Russian and English). Operators can easily pre-configure exact sheet lengths and desired quantities via the touch screen. Our specialized post-cutting mechanism is driven by a heavy-duty hydraulic station and features a Cr12 steel blade with quenched treatment, giving clean, sleek cuts without profile deformation. To greatly simplify operations and lower scrap rates, the advanced feeding entry features an integrated manual pre-cutter, allowing operator flexibility when interchanging input material coils.
[SEO Image: Sturdy base mobility caster wheels providing flexible workshop relocation]
To provide maximum versatility within standard workshop configurations, the heavy structure is fitted with solid mobility wheels on the bottom base, making workspace rearrangements fast and hassle-free. Hebei Xinnuo's immense factory capacity ensures we can facilitate prompt large-scale shipping of top-tier sheet formers worldwide. Each unit is delivered with a full package of operational manuals and remote instruction to help beginner investments run seamlessly from day one.
[SEO Image: Manufacturing workshop displaying batch layout of finished roof sheet forming machines]
| Technical Specifications | Standard Performance Data |
|---|---|
| Applicable Coil Profiles | PPGI, PPGL, Galvanized Coils, Galvalume Sheets, Aluminum |
| Material Thickness / Feeding Width | 0.3 mm – 0.7 mm / Typically 1000mm or 1200mm (As per requests) |
| Maximum Production Speed | 15 – 20 meters per minute (Adjustable via PLC inverter) |
| Roller Forming Stations | 16 – 20 Stages (Configured to deliver exact C20 profile geometry) |
| Roller Core & Shaft Material | 45# Forged Steel with hard chrome coating / Solid Φ75mm shafts |
| Shearing Setup Type | Automatic Hydraulic Post-cut, Cr12 Steel Cutters with Quenching |
| Automation System | Full PLC Controller with Touch panel (Siemens, Delta, or Mitsubishi) |
| Drive Power Capacity | Main Power: 5.5 kW / Hydraulic Unit: 4.0 kW |
| Voltage Standard | 380V, 50Hz, 3 Phase (Configurable based on regional standards) |
