Frustrated by sheet deformation, high material scrap, and complex settings? Our R101 IBR sheeting machine eliminates these headaches. Equipped with a manual pre-cutter to stop material waste and an intuitive PLC system, it empowers beginners to achieve flawless trapezoidal profiles, effortless mass production, and immediate market profitability.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. proudly presents a specialized industrial manufacturing solution tailored for the Latin American construction sector. Our premium R101 ibr sheeting machine for sale is precision-engineered to perfectly fulfill the intensive market demand for classic R101 trapezoidal steel cladding sheets. Extensively deployed across industrial warehouses and urban residential roofing projects throughout Mexico, this equipment delivers a perfect integration of structural durability, absolute geometric consistency, and rapid cycle output speeds.

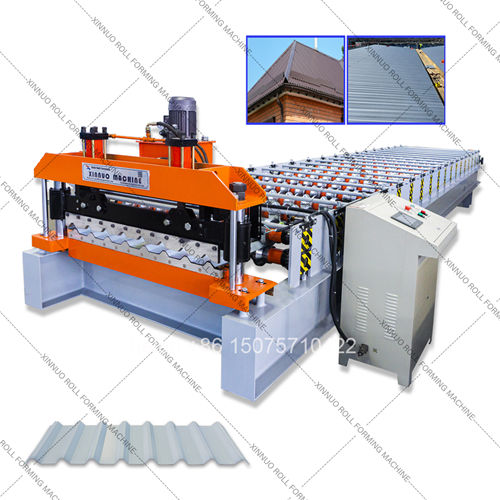

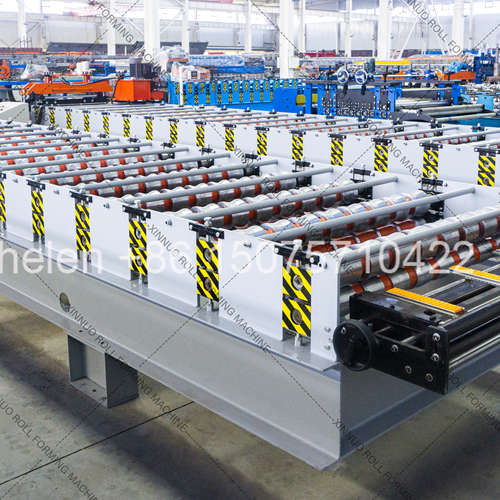

[SEO Image: Main body of the R101 IBR sheeting machine showcasing rigid steel framework and roller stations]
This high-precision roll forming equipment utilizes an advanced structural configuration to guarantee steady profile shape forming. Every single roller station is meticulously engineered from high-grade 45# forged steel using sophisticated CNC toolings and treated with thick hard chrome plating. This critical manufacturing process eliminates the risk of surface scratches or paint peeling on color-coated raw sheets during high-speed rolling operations. Driven by a robust transmission configuration and an over-dimensioned solid shaft system, the machine forms steel raw sheets smoothly without any profile twists.

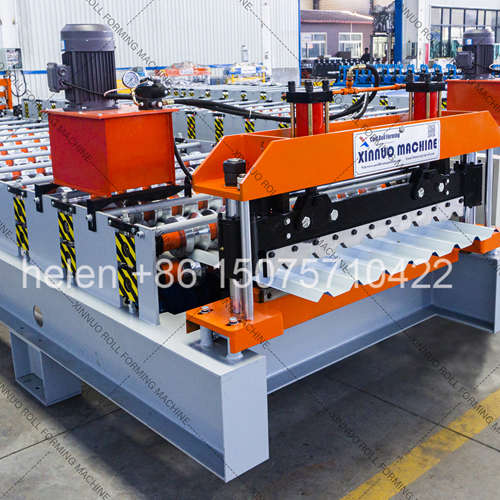

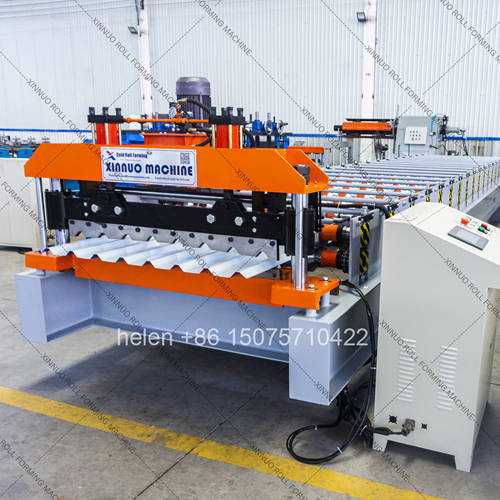

[SEO Image: Highly robust hydraulic post-cutting mechanism integrated with heat-treated mold steel blade]

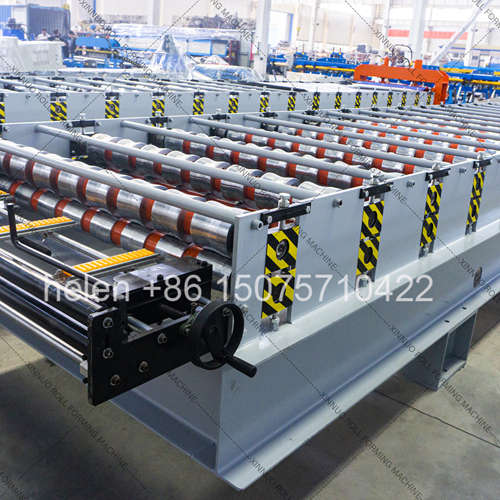

[SEO Image: Advanced material entry guide structure featuring a manual pre-cutter blade]
The entire operation line is handled via an automatic PLC control computer that supports multi-language digital interfaces (including Spanish and English), making it highly user-friendly for local Mexican operations. Users can simply customize required batch output quantities and exact structural lengths via the touch panel. The heavy-duty hydraulic shear utilizes a robust Cr12 steel post-cut blade, executing clean, swift, burr-free cuts without disrupting the R101 trapezoidal profile. Additionally, the entry feed assembly is cleverly integrated with a manual pre-cutter to allow efficient raw material coil exchanges, significantly minimizing overall workshop material scrap.
[SEO Image: Solid base mobility caster wheels providing flexible adjustment of factory workshop configurations]
To facilitate ultimate floor-plan versatility, the rigid structural base is fitted with heavy-duty mobility wheels, enabling swift workshop rearrangement to maximize material handling. At Hebei Xinnuo, our high-volume factory outputs allow us to fulfill batch orders and support international distributors with steady supplies. Every roll former line comes complete with simple operational diagnostics and remote technician support, ensuring your beginner investment generates high returns without complications.
[SEO Image: Production floor displaying a comprehensive batch layout of roll formers finalized for export execution]
| Technical parameters | Standard Performance Specifications |
|---|---|
| Applicable Coil Types | PPGI, PPGL, Galvanized Coils, Aluminum Sheets |
| Material Sheet Width / Thickness | 1000 mm / 0.3 mm – 0.7 mm (Customizable based on project request) |
| Maximum Sheeting Speed | 15 – 20 meters per minute (PLC variable speed adjusted) |
| Roller Forming Stations | 16 – 20 Rows (Engineered for standard R101 geometry profile) |
| Roller / Solid Shaft Material | 45# Forged Steel with hard chrome layer / Solid Φ75-80mm shafts |
| Shearing Setup Type | Automatic Hydraulic Post-cut, Cr12 Steel Blade with Quenched Treatment |
| Automation Configuration | Full PLC Controller with Touch Screen (Siemens, Delta, or Mitsubishi) |
| Drive Power Capacity | Main Motor Power: 5.5 kW / Hydraulic Station Power: 4.0 kW |
| Voltage Configuration | 220V/380V/440V, 50Hz/60Hz, 3 Phase (Tailored to match Mexico grid local standards) |
