Frustrated by profiling inaccuracies, costly sheet scrap, or complicated machinery setups? Our 840 ibr roof sheet making machine solves these core headaches. Featuring an intelligent manual pre-cutter to stop material waste and intuitive PLC controls, it empowers beginner investors to deliver precise trapezoidal profiles, secure smooth mass production, and maximize profit margins.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. proudly introduces an exceptional industrial manufacturing solution tailored for international roofing markets. Our top-tier 840 ibr roof sheet making machine is precision-engineered to perfectly satisfy the immense global demand for standard 840mm trapezoidal profile panels. Extensively deployed across industrial warehouses, commercial steel constructions, and residential roofing projects worldwide, this machinery delivers a brilliant integration of structural durability, geometric consistency, and rapid production output.

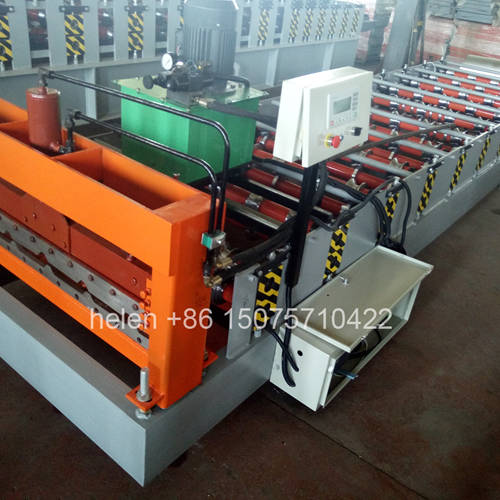

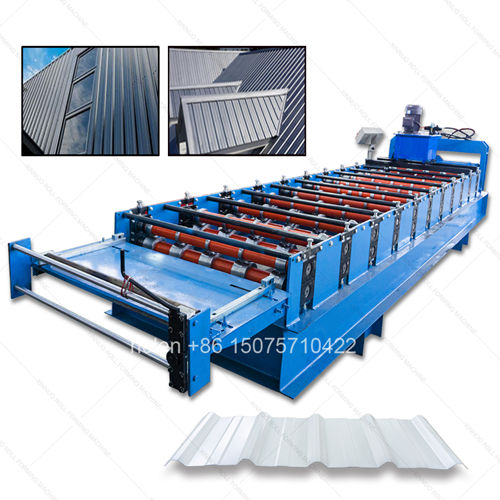

[SEO Image: Main body of the 840 IBR roofing sheet machine demonstrating rigid steel plating and precise roller stations]

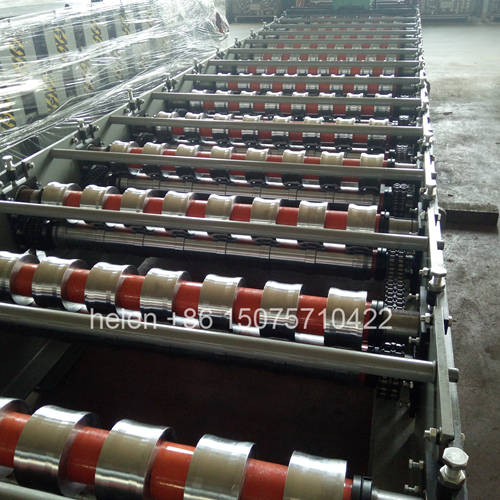

This high-performance roll forming line utilizes a highly braced structural framework to guarantee steady shape profiling over decades of rigorous operation. Every individual roller station is meticulously engineered from high-grade 45# forged steel using sophisticated CNC toolings and treated with thick hard chrome plating. This critical manufacturing process completely eliminates the risk of surface scratches or paint peeling on color-coated raw sheets during continuous high-speed rolling. Driven by an oversized chain transmission configuration and solid shaft system, the machine feeds steel raw sheets smoothly without any profile twists.

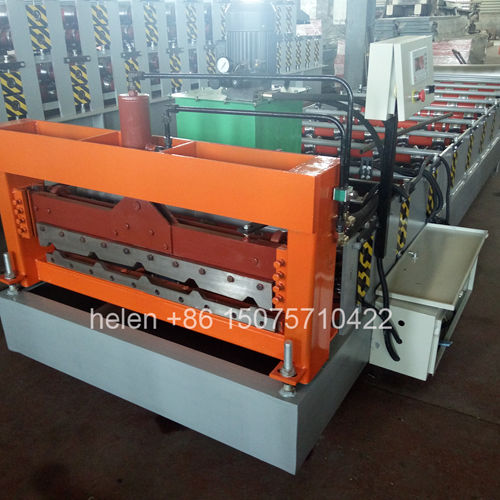

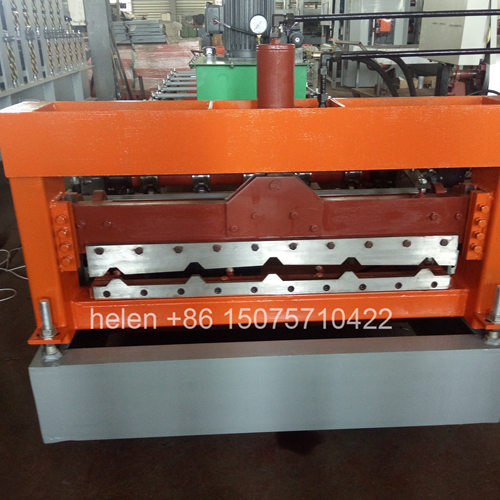

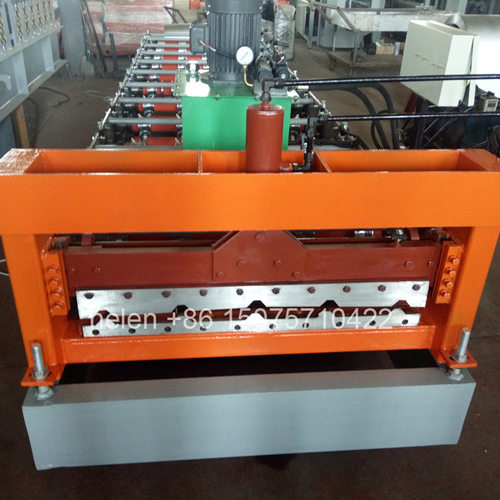

[SEO Image: Heavy-duty hydraulic post-cutting mechanism integrated with heat-treated premium mold steel blade]
[SEO Image: Advanced material entry guide structure featuring a manual pre-cutter blade for cost efficiency]
The entire operation line is automated via an intelligent PLC control computer that supports multi-language digital interfaces, making it highly user-friendly for global factory operators. Users can simply customize required batch output quantities and exact sheet lengths via the touch panel. The heavy-duty hydraulic shear utilizes a robust Cr12 steel post-cut blade, executing clean, swift, burr-free cuts without disrupting the 840 trapezoidal geometry. Additionally, the entry feed assembly is integrated with a manual pre-cutter to allow efficient raw material coil exchanges, significantly minimizing overall workshop material scrap.
[SEO Image: Rigid base mobility caster wheels providing flexible adjustment of factory workshop configurations]
To provide maximum versatility within standard warehouse layouts, the heavy structural base is fitted with high-capacity mobility wheels, enabling swift workshop rearrangement to maximize material handling. At Hebei Xinnuo, our immense factory scale allows us to fulfill large batch orders and support international distributors with steady supplies. Each unit comes complete with simple operational diagnostics and remote technical support, ensuring your beginner investment generates high returns without complications.
[SEO Image: Production floor displaying a comprehensive batch layout of roll formers finalized for global export execution]
| Technical parameters | Standard Performance Specifications |
|---|---|
| Applicable Coil Types | PPGI, PPGL, Galvanized Coils, Aluminum Sheets |
| Material Sheet Width / Thickness | 1000 mm / 0.3 mm – 0.7 mm (Customizable based on 840mm profile request) |
| Maximum Sheeting Speed | 15 – 20 meters per minute (PLC variable speed adjusted) |
| Roller Forming Stations | 16 – 20 Rows (Engineered for standard 840 trapezoidal profile geometry) |
| Roller / Solid Shaft Material | 45# Forged Steel with hard chrome layer / Solid Φ75-80mm shafts |
| Shearing Setup Type | Automatic Hydraulic Post-cut, Cr12 Steel Blade with Quenched Treatment |
| Automation Configuration | Full PLC Controller with Touch Screen (Siemens, Delta, or Mitsubishi) |
| Drive Power Capacity | Main Motor Power: 5.5 kW / Hydraulic Station Power: 4.0 kW |
| Voltage Configuration | 380V, 50Hz, 3 Phase (Tailored to match regional factory standards worldwide) |
