Frustrated by profile deviation, costly sheet scrap, or tricky machine setups? Our C17 IBR roof sheeting machine eliminates these operational headaches. Featuring a waste-reducing manual pre-cutter and simple PLC automation, it enables beginner investors to deliver flawless trapezoidal panels, achieve effortless mass production, and unlock rapid market profitability.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. presents the ultimate production engineering for Central Asia's fast-growing construction industrial markets. Our premium C17 ibr roof sheeting machine is intentionally configured to meet the escalating local standard demands for high-quality C17 trapezoidal metal sheets. Widely deployed across major structural projects in Uzbekistan, this machinery line converts lightweight galvanized steel, pre-painted iron (PPGI), or aluminum coils into structurally consistent, highly durable, and aesthetically precise corrugated roofing profiles.

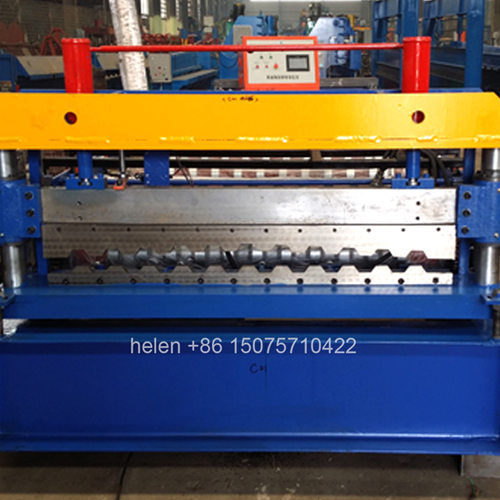

[SEO Image: Main body of the C17 IBR roll forming machine showing precision rollers and frame layout]
The machinery structural engineering integrates heavy-duty stations ensuring zero flex during continuous operation. All rollers are precision-machined by high-grade CNC lathe tools using solid 45# forged steel and treated with thick hard chrome plating. This thorough finish ensures absolute rust resistance and prevents any paint damage or scratches on delicate color-coated raw sheets. Supported by a robust transmission configuration and an intelligent chain drive system, the steel substrate progresses flawlessly, providing symmetrical profile configurations with zero deviation.

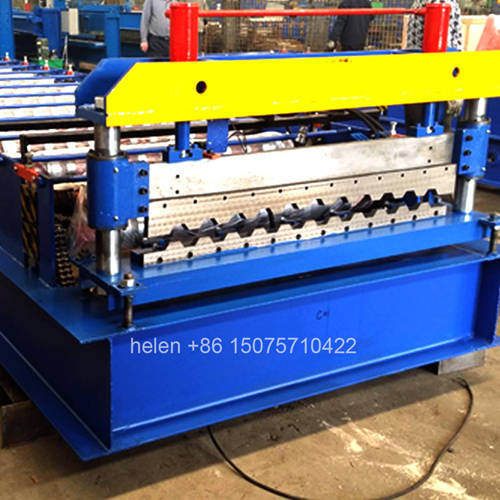

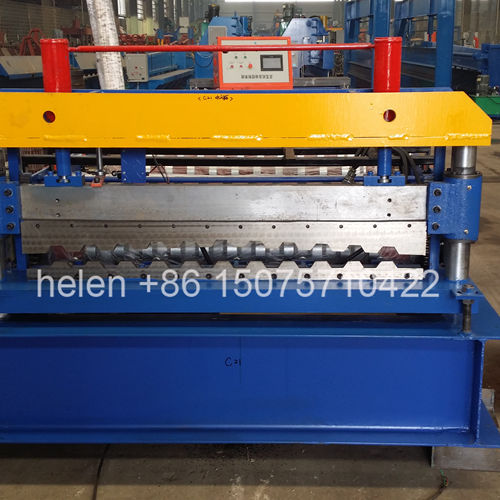

[SEO Image: Highly robust hydraulic post-cutting mechanism integrated with heat-treated mold steel blade]

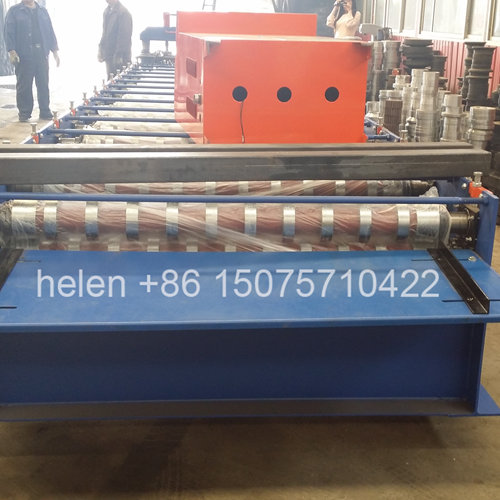

[SEO Image: Advanced material entry guide structure featuring a manual pre-cutter blade]
Control operations are handled by an automated PLC configuration featuring a user-friendly touch screen that supports multiple operational languages, perfectly matching the regional requirements of CIS operators. Users can simply customize required batch sizes and exact panel cutting lengths. The high-pressure hydraulic shear utilizes a robust Cr12 steel post-cut blade, executing clean, swift, burr-free cuts without disrupting the C17 trapezoidal profile. Additionally, the entry feed assembly is cleverly integrated with a manual pre-cutter to allow efficient raw material coil exchanges, significantly minimizing overall workshop material scrap.
[SEO Image: Solid base mobility caster wheels providing flexible adjustment of factory workshop configurations]
To facilitate ultimate floor-plan versatility, the rigid structural base is fitted with heavy-duty mobility wheels, enabling swift workshop rearrangement to maximize material handling. At Hebei Xinnuo, our high-volume factory outputs allow us to fulfill batch orders and support international distributors with steady supplies. Every roll former line comes complete with simple operational diagnostics and remote technician support, ensuring your beginner investment generates high returns without complications.
[SEO Image: Production floor displaying a comprehensive batch layout of roll formers finalized for export execution]
| Technical parameters | Standard Performance Specifications |
|---|---|
| Applicable Coil Types | PPGI, PPGL, Galvanized Coils, Aluminum Sheets |
| Material Sheet Thickness | 0.3 mm – 0.7 mm (Customizable based on project request) |
| Maximum Sheeting Speed | 15 – 20 meters per minute (PLC variable speed adjusted) |
| Roller Forming Stations | 16 – 20 Rows (Engineered for standard C17 geometry profile) |
| Roller / Solid Shaft Material | 45# Forged Steel with hard chrome layer / Solid Φ75mm shafts |
| Shearing Setup Type | Automatic Hydraulic Post-cut, Cr12 Steel Blade with Quenched Treatment |
| Automation Configuration | Full PLC Controller with Touch Screen (Siemens, Delta, or Mitsubishi) |
| Drive Power Capacity | Main Motor Power: 5.5 kW / Hydraulic Station Power: 4.0 kW |
| Voltage Configuration | 380V, 50Hz, 3 Phase (Tailored to match local factory requirements) |
