Frustrated by panel profiling inaccuracies, costly sheet scrap, or tedious setup processes? Our 1050 IBR sheet making machine solves these core headaches. Featuring an intelligent manual pre-cutter to eliminate waste and effortless PLC controls, it allows beginner investors to deliver precise trapezoidal profiles, secure smooth mass production, and maximize profit margins.
Hebei Xinnuo Roll Forming Machinery Co., Ltd. presents an exceptional industrial engineering solution for global construction sectors. Our high-performance 1050 model roll forming machinery line is engineered to perfectly fabricate top-grade trapezoidal metal profile panels. If you are evaluating a highly competitive 1050 ibr sheet making machine price, our system offers a marvelous balance of high reliability, excellent structural stability, and superior output efficiency. It efficiently converts galvanized steel, pre-painted iron (PPGI), or aluminum coils into heavy-duty corrugated panels.

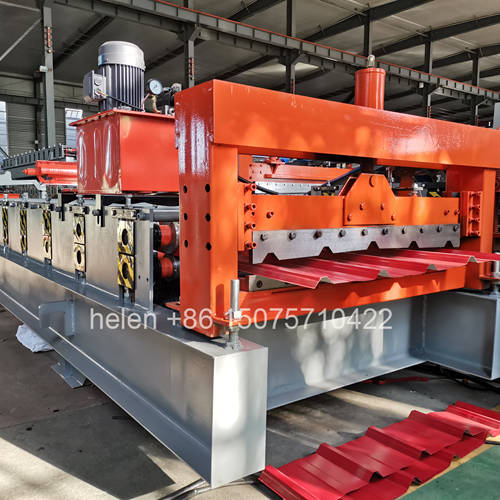

[SEO Image: Main body of the 1050 IBR metal roll forming machine showing precision rollers and heavy framework]

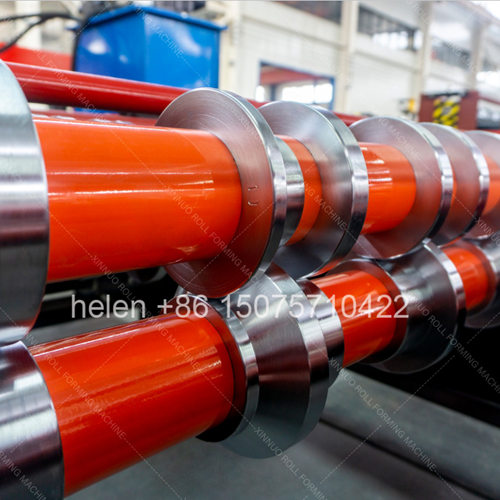

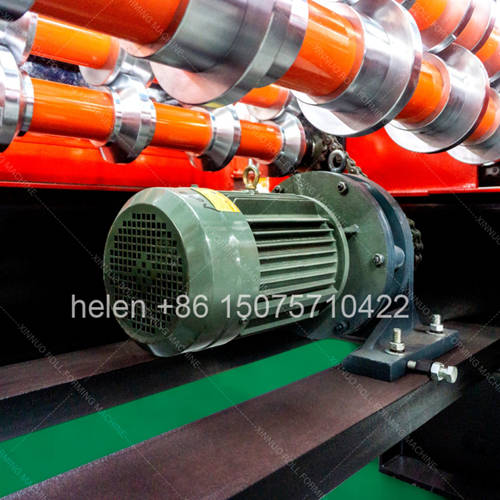

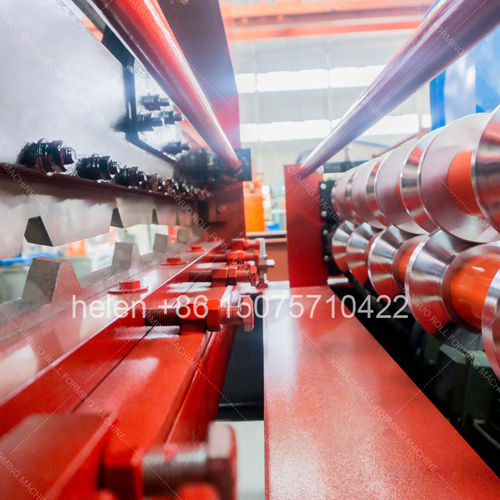

This precision roll forming machinery integrates numerous solid forming stations to execute smooth metal sheet deformation without profile deviation. Every single roller is accurately engineered from premium 45# forged steel via advanced CNC machinery and treated with thick hard chrome plating. This thorough finish ensures complete rust protection and eliminates surface paint scratches during high-volume production operations. Driven by a heavy-duty continuous chain drive system and powerful electric motor, the raw sheet processes seamlessly into symmetrical structural panels.

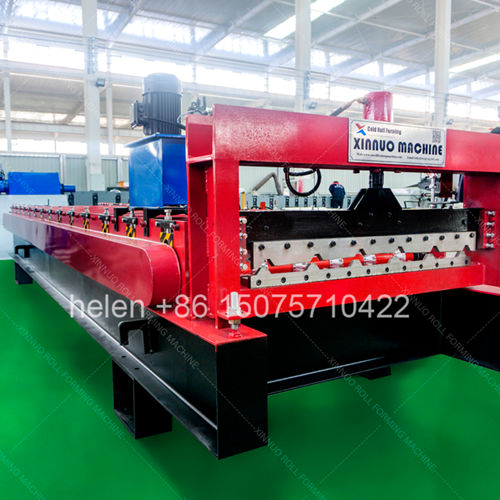

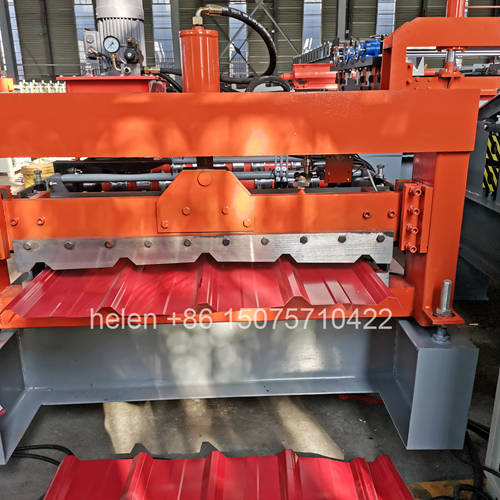

[SEO Image: Post-cut hydraulic shearing mechanism equipped with robust heat-treated mold steel blade]

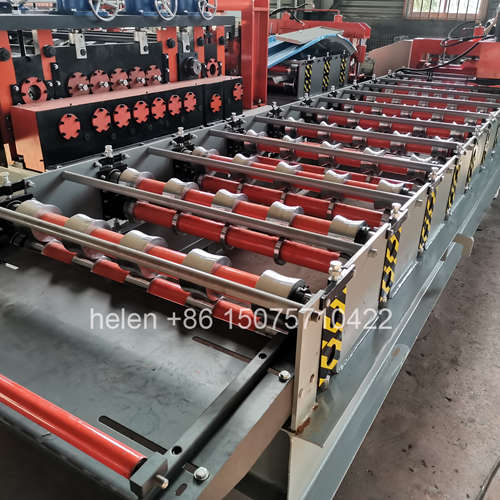

[SEO Image: Material entry guide layout featuring a manual pre-cutter blade for cost efficiency]

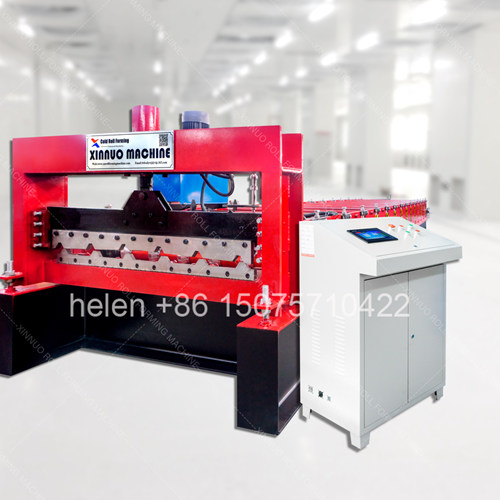

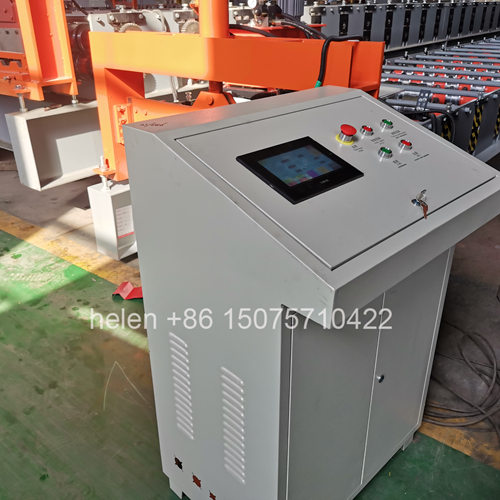

The entire operation line is handled via an automatic PLC control computer that supports multi-language digital interfaces, making it user-friendly for operators worldwide. Users can simply customize required batch output quantities and exact structural lengths. The high-pressure hydraulic shear utilizes a robust Cr12 steel post-cut blade, executing clean, swift, burr-free cuts without disrupting the 1050 trapezoidal profile. Additionally, the entry feed assembly is cleverly integrated with a manual pre-cutter to allow efficient raw material coil exchanges, significantly minimizing overall workshop material scrap.
[SEO Image: Rigid base mobility caster wheels providing flexible adjustment of factory workshop configurations]
To facilitate ultimate floor-plan versatility, the rigid structural base is fitted with heavy-duty mobility wheels, enabling swift workshop rearrangement to maximize material handling. At Hebei Xinnuo, our high-volume factory outputs allow us to fulfill batch orders and support international distributors with steady supplies. Every roll former line comes complete with simple operational diagnostics and remote technician support, ensuring your beginner investment generates high returns without complications.
[SEO Image: Production floor displaying a comprehensive batch layout of roll formers finalized for export execution]
| Technical parameters | Standard Performance Specifications |
|---|---|
| Applicable Coil Types | PPGI, PPGL, Galvanized Coils, Aluminum Sheets |
| Material Sheet Width / Thickness | 1050 mm / 0.3 mm – 0.8 mm (Customizable based on project request) |
| Maximum Sheeting Speed | 15 – 20 meters per minute (PLC variable speed adjusted) |
| Roller Forming Stations | 18 – 22 Rows (Engineered for standard 1050 geometry profile) |
| Roller / Solid Shaft Material | 45# Forged Steel with hard chrome layer / Solid Φ75-80mm shafts |
| Shearing Setup Type | Automatic Hydraulic Post-cut, Cr12 Steel Blade with Quenched Treatment |
| Automation Configuration | Full PLC Controller with Touch Screen (Siemens, Delta, or Mitsubishi) |
| Drive Power Capacity | Main Motor Power: 5.5 kW / Hydraulic Station Power: 4.0 kW |
| Voltage Configuration | 380V, 50Hz, 3 Phase (Tailored to match local factory requirements) |
