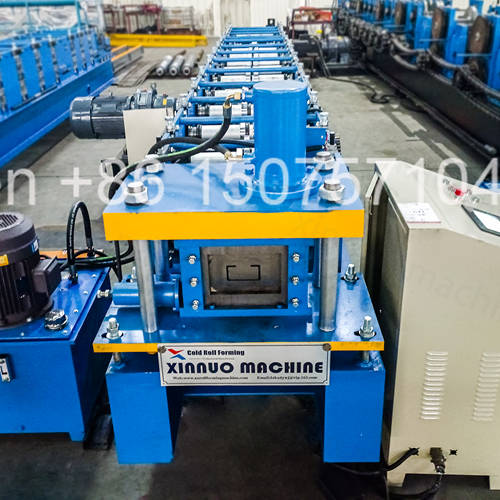

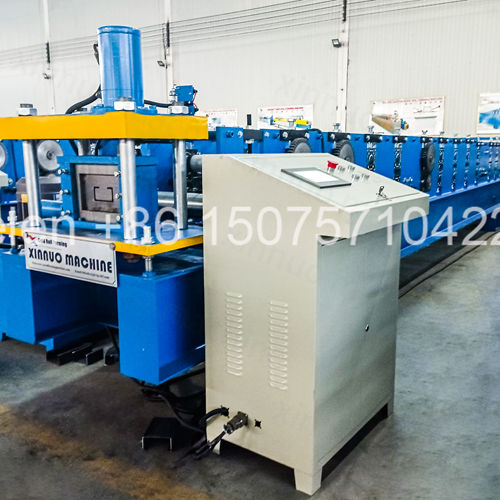

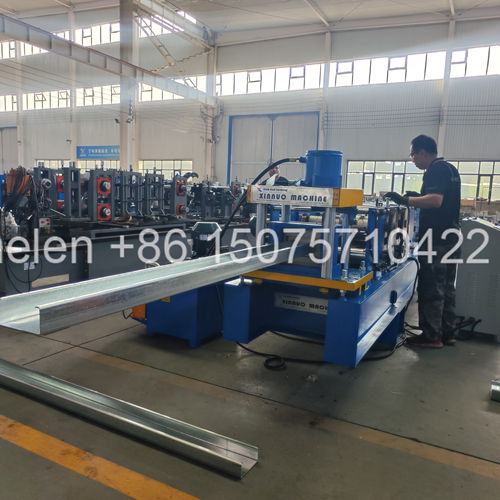

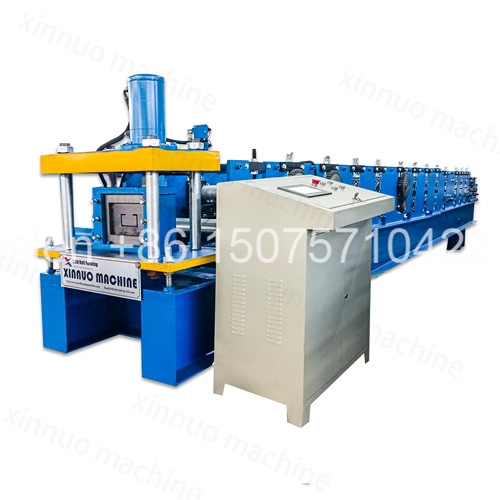

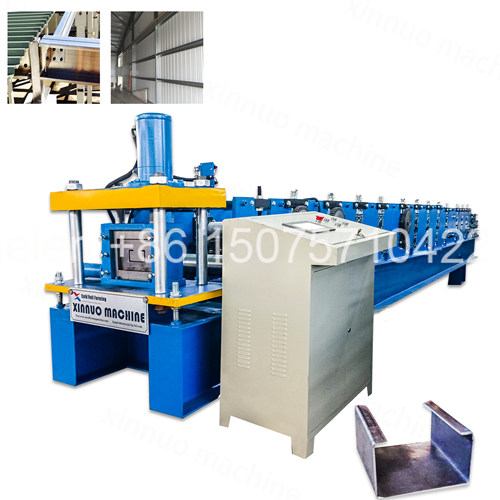

The price of a purlin roll forming machine depends on multiple configuration factors rather than a single fixed number. Understanding these cost drivers helps buyers budget accurately and avoid overpaying for unneeded features or under-specifying a machine that cannot meet production demands. This guide explains every factor that influences purlin machine pricing, provides comparative cost benchmarks across machine tiers, and outlines what is included in a standard quotation versus what counts as optional extras — enabling informed purchase decisions based on actual production requirements rather than headline prices alone.
| Cost Factor | Impact on Price | Explanation |
|---|---|---|
| Machine Type | Largest single factor | Manual C → Computer C → CZ Integrated → CZU Flagship: each tier adds 50-80% over the previous |
| Profile Width Range | Significant | Wider profiles require larger frame, longer shafts, heavier tooling — a 400mm machine costs more than a 200mm |
| Material Thickness Capacity | Major | Every 1mm increase in max thickness requires stronger frame, larger shafts, bigger motor — 5mm capacity needs 2-3× the steel of 1.5mm |
| Number of Forming Stations | Moderate to high | Each additional station adds roller sets, bearings, housings, and chain drives — 20 stations vs 12 stations is significant cost difference |
| Drive System Type | Moderate | Gear motor (base) → Hydraulic motor (+15-20%) → Servo motor (+25-35%) — servo offers precision and speed but costs more |
| Shear Technology | Moderate | Hydraulic stop-cut (base) → Flying shear (+$2,000-4,000) → Servo flying shear (+$4,000-6,000) |
| Frame Construction | Moderate | H-beam welded (base) → Archway plate (牌坊式) with 40mm thickness → 50mm heavy archway — more steel = more cost but more stability |
| Automation Level | Moderate to high | Manual adjustments → motorized with encoder → full CNC servo — each step adds motors, drives, sensors, and programming |
| Punching System | Low to moderate | No punch → single punch → dual punch pre and post → multi-die quick-change — each upgrade adds hydraulic and tooling cost |
| Control System Brand | Low to moderate | Domestic PLC → Delta/Taiwan → Siemens/Germany — brand premium for international name recognition and global support network |
| Decoiler Capacity | Low | 3-ton cantilever (standard) → 5-ton heavy-duty → 8-ton A-frame tripod — larger decoiler handles heavier coils but adds cost |
| Optional Equipment | Variable | Auto stacker, coil car, loop accumulator, automatic bundler — each option priced separately based on complexity |
| Tier | Machine Type | Relative Price Level | Key Inclusions | Best For |
|---|---|---|---|---|
| Economy | Manual C Purlin Machine | Entry level (base ×1.0) | 12-14 rows, 300H frame, gear motor, manual adjustment, basic shear | Startup factory, single-size production, low volume |
| Standard | Computer C Purlin Machine | Mid-range (base ×1.6-2.0) | 15-18 rows, 350-400H frame, hydraulic motor, HMI control, motorized adjustment | Growing factory, multi-size batches, regular production |
| Professional | CZ Integrated Machine | Upper mid-range (base ×2.5-3.5) | 16-20 rows, archway frame, hydraulic/servo motor, C+Z auto switching, flying shear option | Export-oriented, dual-profile demand, medium-high volume |
| Industrial | CZU Integrated Flagship | Premium (base ×4.0-5.5) | 24-26 rows, heavy archway frame, 30-55KW servo, C+Z+U switching, full automation | High-volume export, maximum product range, 3-shift operation |
| Included Item | Details |
|---|---|
| Main Forming Machine | Complete forming unit with specified number of stations, frame, shafts, and roller dies |
| Hydraulic Decoiler | Cantilever type with manual expansion and pneumatic brake, specified coil capacity |
| Leveling and Feed Guide | 7-roller straightening cassette with entry side guides and edge alignment |
| Hydraulic Punch System | Pre-punch and/or post-punch unit with one standard die set per customer hole pattern |
| Hydraulic Shear Unit | Stop-cut or flying shear with one set of blades installed and tested |
| Run-Out Conveyor Table | Two sections total 6,000mm length with free rollers and adjustable side guides |
| PLC Control System | Siemens or Delta PLC, 10-inch touchscreen HMI, pre-programmed with all machine functions |
| Hydraulic Power Pack | Complete with motor, pump, oil tank, valves, and filled with initial hydraulic oil charge |
| Electrical Cabinet | Pre-wired, labeled, with main isolator, overload protection, and emergency stop circuit |
| Spare Parts Kit | Set of wear parts: shear blade set, bearings, seals, fuses, sensors — for first year maintenance |
| Tool Box | Complete set of maintenance tools needed for routine operation and adjustment |
| Documentation Package | Operation manual, maintenance manual, electrical diagrams, hydraulic schematics — in English |
| Installation and Training | On-site installation by factory engineer + operator training program for customer team |
| Warranty | 12-month comprehensive warranty on main machine, control system, and hydraulic components |
| Optional Upgrade | Price Impact | When Worth the Investment |
|---|---|---|
| Servo Motor Upgrade (from hydraulic) | +$3,000-5,000 | When precision positioning, recipe storage, or remote diagnostics are needed |
| Flying Shear Upgrade (from stop-cut) | +$2,000-4,000 | When production volume exceeds 2,000 tons/year and efficiency matters |
| Servo Flying Shear (from hydraulic flying) | +$4,000-6,000 | When tight length tolerance (±0.5mm) is a customer specification requirement |
| Heavy-Duty Frame Upgrade (40→50mm) | +$1,500-2,500 | When processing 3mm+ structural steel regularly or planning 3-shift operation |
| Dual Punch Station (pre + post) | +$2,000-3,500 | When purlins require hole patterns on both ends or complex punching layouts |
| Multi-Die Quick-Change System | +$1,500-2,500 | When producing purlins for different customers with different hole specifications |
| Automatic Stacker System | +$5,000-8,000 | When labor cost is high or production exceeds 3,000 tons/year — ROI in 6-12 months |
| Automatic Coil Car | +$2,000-3,000 | When using 5+ ton coils or when overhead crane access is limited |
| Loop Accumulator | +$3,000-5,000 | For truly continuous production with coil-to-coil welding — high volume lines only |
| Siemens PLC Upgrade (from Delta) | +$1,000-2,000 | When local Siemens support is important or customer standard requires specific brand |
| Extended Run-Out Table (to 12m) | +$800-1,200 | When producing purlins longer than 6 meters regularly |
| A-Frame Tripod Decoiler (from cantilever) | +$1,500-2,000 | When using coils heavier than 5 tons or requiring faster coil changeover |
| Cost Category | First Year | Annual Ongoing | Notes |
|---|---|---|---|
| Machine Purchase | 100% of quotation | — | One-time capital investment, depreciate over 10-15 years |
| Shipping and Freight | Varies by destination | — | 1× 40ft container typically; get quote from forwarder |
| Import Duty and Tax | Country-specific | — | Check HS code and local tariff schedule before ordering |
| Installation Foundation | ~$500-1,000 | — | Concrete floor preparation and anchor bolt installation |
| Electricity Consumption | Dependent on usage | $2,000-8,000 | Calculated per motor KW × operating hours × local rate |
| Consumable Parts | Covered by spares kit | $500-1,500 | Shear blades, seals, filters, lubricants, cleaning supplies |
| Roller Die Replacement | Not required | $500-2,000 | Depends on production volume; typical life 5,000-10,000 tons per set |
| Labor (Operators) | Included in wage bill | Per local wage rate | 1-2 operators per shift; training reduces learning curve cost |
| Maintenance Labor | Minimal first year | $1,000-3,000 | In-house technician time for preventive maintenance schedule |
| Budget Strategy | How It Saves Cost | Trade-Off to Consider |
|---|---|---|
| Choose fixed-size over adjustable | Eliminates all adjustment mechanisms, motors, and encoders — saves 30-40% | Cannot change profile dimensions; must buy another machine for new sizes |
| Standard width range (80-300mm) | Matches most common profiles; wider range needs larger frame and tooling | Limits future business to standard market sizes |
| Hydraulic motor instead of servo | Lower component cost and simpler maintenance | No recipe storage; slower changeover; less precise speed control |
| Stop-cut shear instead of flying | Simpler mechanism, 15-20% lower main machine cost | Production pauses at each cut; 13-15% efficiency loss vs continuous |
| Single punch station | One hydraulic unit instead of two; less tooling inventory | More limited hole pattern options; may need secondary drilling |
| Buy base machine, add options later | Lower upfront capital requirement | Retrofit costs more than factory installation; some upgrades need frame modifications |
| Group multiple machines in one order | Volume discount on manufacturing and container consolidation | Requires larger initial capital commitment |
| Step | Information to Provide | Why It Matters |
|---|---|---|
| 1 | Target purlin profile types: C, Z, CZ, or CZU | Determines machine category and base price tier |
| 2 | Profile dimensions: width, height, lip — minimum and maximum for each | Sets frame size, shaft length, adjustment range, and roller tooling scope |
| 3 | Material thickness range: thinnest and thickest to process | Single most important factor for motor power and frame rigidity specification |
| 4 | Material type and steel grade: galvanized, cold-rolled, structural, yield strength | High-strength steel needs more forming stations and stronger drive train |
| 5 | Estimated monthly or annual production volume in tons | Determines whether stop-cut or flying shear, and automation level needed |
| 6 | Hole pattern requirements: bolt hole diameter, spacing, slotted holes | Sizes the punch tonnage, number of die stations, and pre vs post punch arrangement |
| 7 | Power supply available: voltage, phase, frequency at your factory | Ensures motor and control system are correctly specified for your electrical grid |
| 8 | Destination port for shipping quotation | Affects freight cost; allows accurate CIF or DAP price to be calculated |
| Term | Standard Arrangement | Alternative Options |
|---|---|---|
| Payment Structure | 30% deposit with order, 70% before shipment | Letter of credit (L/C) for larger orders; installment plans negotiable |
| Production Lead Time | 25-35 working days from deposit receipt | Expedited production available at premium; subject to factory schedule |
| Shipping Method | Sea freight in 40ft container or flat rack | Air freight for urgent small machines; rail to Central Asia and Eastern Europe |
| Incoterms | FOB Tianjin (buyer arranges shipping) | CIF to destination port; DAP to factory door — priced per quotation |
| Warranty Period | 12 months from bill of lading date | Extended warranty available; service contracts for ongoing maintenance |
| After-Sales Coverage | Remote support included; on-site visits priced separately | Annual service visit packages available with discounted rates |
Every purlin machine is configured to the customer's specific production requirements. To receive an accurate price quotation with detailed specification sheet, production line layout drawing, and delivery timeline, please provide the eight information points listed in the quotation preparation guide above. Quotations are prepared within 24-48 hours and include complete machine specifications, scope of supply, optional upgrades with individual pricing, payment terms, and estimated shipping cost to your destination port. Factory visit and video inspection of reference machines are available and encouraged before order confirmation.
