- High speed continuous C channel cold roll forming line
- Servo motor drive with precision encoder length control
- Non-stop flying shear system for uninterrupted production
- 20-station progressive roller forming with CNC adjustment
- Heavy 12-ton archway frame with Cr12MoV wear rollers
- Touchscreen auto size change in under 60 seconds
- Supports unequal-leg C purlins and custom hole patterns

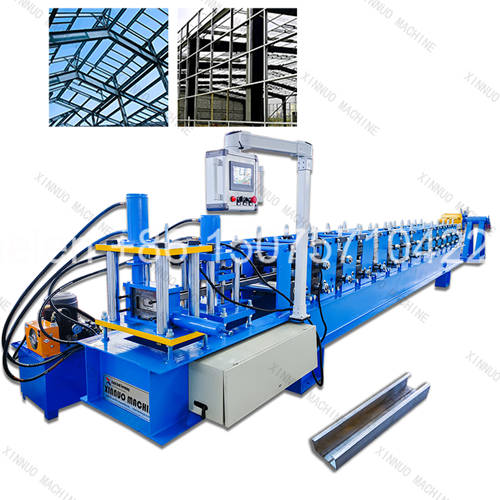

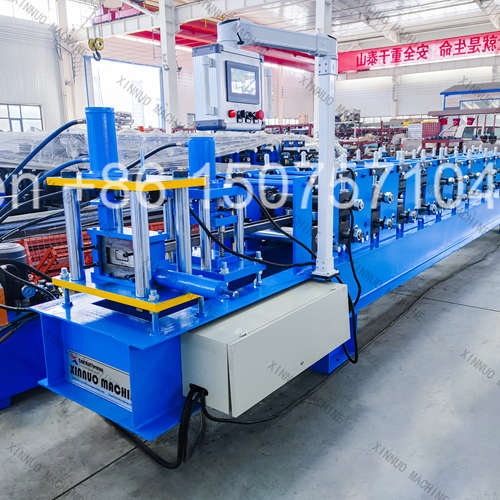

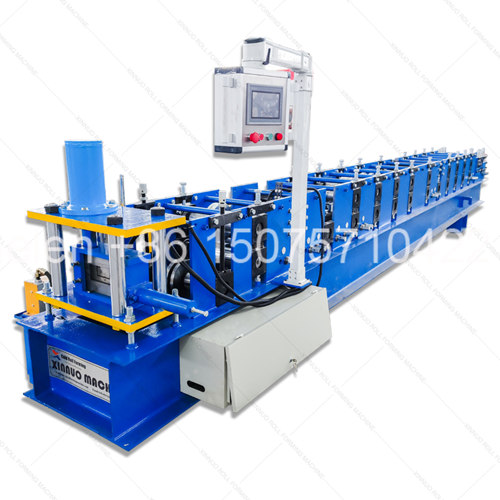

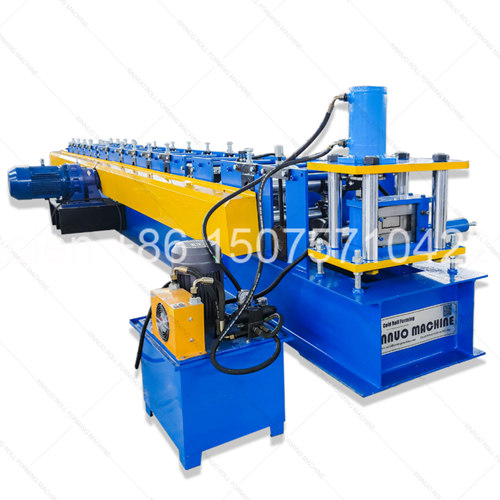

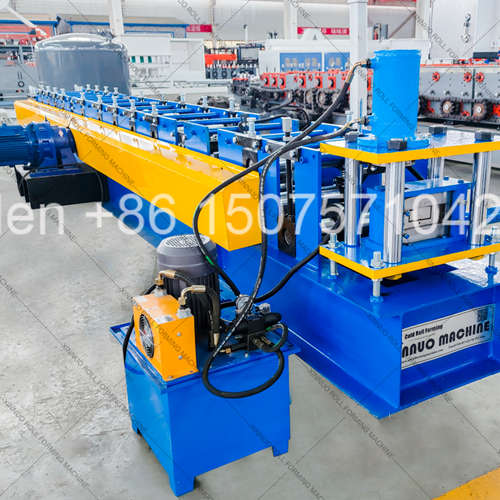

This high speed C purlin roll former is a fully automatic cold roll forming production line designed for continuous manufacturing of C-shaped steel channels. Built on a rigid 40-50mm archway frame machined to 0.05mm flatness, the machine delivers consistent profile accuracy across extended production runs. The servo-driven flying shear eliminates material stopping during cutting, achieving near-continuous throughput for high volume steel structure, warehouse, and solar farm projects.
| Parameter | Value |
|---|---|
| Machine Type | Automatic C purlin cold roll former |
| Forming Stations | 16-20 rows progressive roller forming |
| Frame Design | Archway structure (牌坊式), 40-50mm steel plate with ribs |
| Shaft Diameter | Φ90-100mm, 40Cr alloy steel, chrome plated |
| Main Drive Motor | 22-30KW servo motor with variable speed control |
| Chain Drive | 2.5-inch heavy-duty roller chain, dual-row configuration |
| Cutting System | Non-stop flying shear (跟踪剪切), single-knife gapless |
| Cutting Accuracy | ±0.5mm length tolerance at full production speed |
| Output Efficiency | Up to 98% (continuous operation without pause) |
| Machine Weight | Approximately 12 tons |
| Forming Speed | 8-15 m/min (material and thickness dependent) |
| Control Interface | 10-inch color touchscreen HMI, multi-language support |
| Dimension | Minimum | Maximum | Increment |
|---|---|---|---|
| Bottom Width | 80 mm | 300 mm | 1 mm |
| Side Height | 40 mm | 100 mm | 1 mm |
| Lip Length | 10 mm | 30 mm | 1 mm |
| Material Thickness | 1.0 mm | 3.0 mm | — |
| Material Type | Grade | Coating |
|---|---|---|
| Hot-dip galvanized steel | DX51D, DX52D, DX53D | Z100-Z275 g/m² |
| Cold-rolled steel | SPCC, SPCD, DC01-DC04 | Bare / oiled |
| Pre-painted steel | PPGI / PPGL | PE / SMP / PVDF |
| High-strength structural steel | Q345, S350GD, G450 | Zinc / bare |
| Process Step | Detail |
|---|---|
| Raw Material | GCr15 bearing steel billet, vacuum degassed |
| Forging | Hot forged at 1050-1150°C, grain structure refinement |
| Rough Turning | CNC lathe, 0.1mm stock allowance for finishing |
| Heat Treatment | Vacuum quench + temper, HRC 58-62 across full depth |
| Finish Turning | Precision CNC to final profile geometry |
| Keyway Machining | Wire-cut EDM or broaching for exact fit |
| Hard Chrome Plating | 0.03-0.05mm thickness, mirror polish finish |
| Feature | Flying Shear (Non-Stop) | Hydraulic Shear (Stop-Cut) |
|---|---|---|
| Production Pause | None — continuous operation | Brief pause each cycle |
| Output Efficiency | ~98% | ~85% |
| Length Accuracy | ±0.5mm | ±2-3mm |
| Forming Unit Length | 10,300 mm | 8,950 mm |
| Best Application | High volume, tight tolerance orders | Standard production, varied batches |
| Option | Description |
|---|---|
| Auto Stacker | Automatic counting, alignment, and bundling after shear — adds 2,500mm to line length |
| A-Frame Decoiler | Upgrade from cantilever to tripod type for 5+ ton coils |
| Extended Output Table | Extend run-out brackets to 4,500mm or 6,000mm for profiles up to 12m |
| Hydraulic Punching Upgrade | Higher tonnage punch stations for thick material (3-5mm) hole patterns |
| Remote Monitoring Module | IoT-enabled production data logging and remote diagnostics |
