Frustrated by profiling inaccuracies, expensive sheet waste, or complex equipment operations? Our 762ibr rolling machine resolves these pain points completely. Integrating a waste-reducing manual pre-cutter and precise PLC automation, it enables beginner investors to produce flawless trapezoidal profiles, run reliable mass production, and enjoy swift commercial returns.

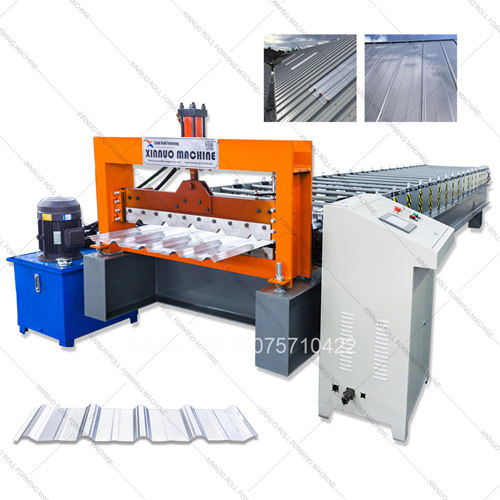

Hebei Xinnuo Roll Forming Machinery Co., Ltd. presents an exceptional industrial engineering solution tailored for the global construction market. Our premium 762ibr rolling machine is precision-engineered to perfectly fulfill the massive international demand for high-quality 762mm trapezoidal steel cladding sheets. Extensively deployed across industrial warehouses, commercial facilities, and residential roofing projects worldwide, this machinery delivers a perfect combination of structural durability, absolute geometric accuracy, and rapid production speeds.

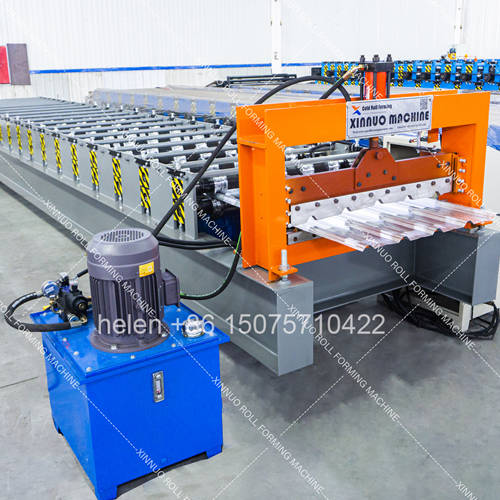

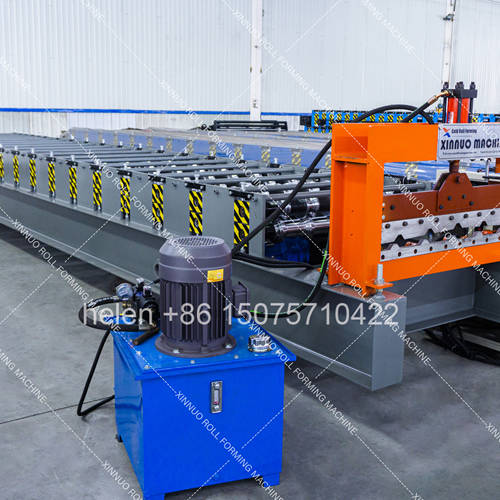

[SEO Image: Main body of the 762 IBR rolling machine showcasing heavy-duty structural frame and precise roller stations]

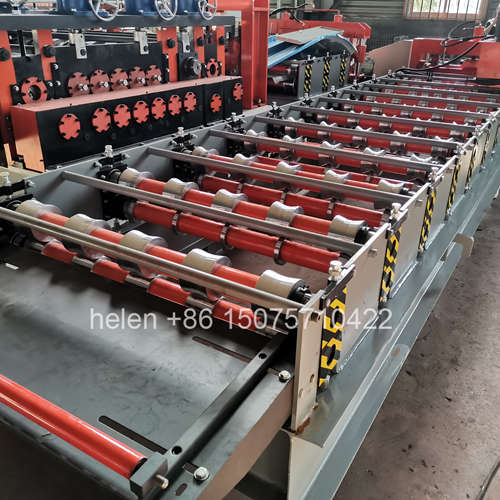

This high-performance roll forming system utilizes an advanced structural layout to guarantee steady profile shaping over decades of operation. Every single roller station is meticulously engineered from high-grade 45# forged steel using sophisticated CNC toolings and treated with thick hard chrome plating. This critical manufacturing process completely eliminates the risk of surface scratches or paint peeling on color-precoated raw sheets during continuous high-speed rolling. Driven by a robust chain transmission mechanism and solid shaft assembly, the steel substrate progresses flawlessly.

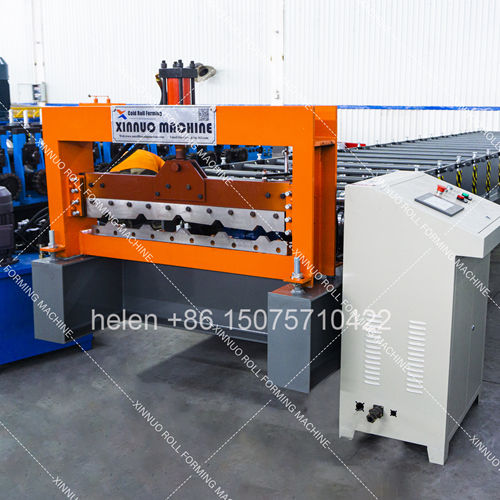

[SEO Image: Heavy-duty hydraulic post-cutting mechanism integrated with heat-treated premium mold steel blade]
[SEO Image: Advanced material entry guide structure featuring a manual pre-cutter blade for cost efficiency]

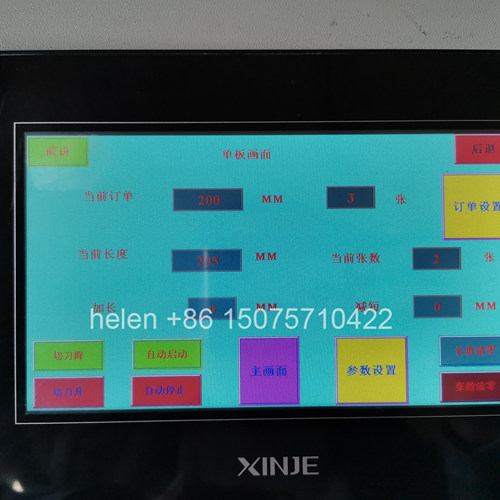

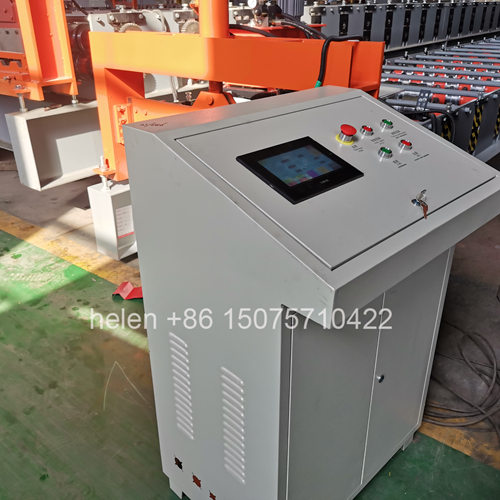

The entire operation line is automated via an intelligent PLC control system that supports multi-language digital interfaces, making it highly user-friendly for global operators. Users can easily customize required batch output quantities and exact sheet lengths via the touch panel. The heavy-duty hydraulic shear utilizes a robust Cr12 steel post-cut blade, executing clean, swift, burr-free cuts without disrupting the 762 trapezoidal profile geometry. Additionally, the entry feed assembly is integrated with a manual pre-cutter to allow efficient raw material coil exchanges, significantly minimizing overall workshop material scrap.
[SEO Image: Rigid base mobility caster wheels providing flexible adjustment of factory workshop configurations]
To provide maximum versatility within standard factory layouts, the rigid machine frame is fitted with high-capacity mobility wheels on the bottom base, making workspace rearrangements fast and hassle-free. Hebei Xinnuo's immense factory scale ensures we can facilitate prompt batch deliveries of top-tier roofing formers worldwide. Each unit is delivered with a comprehensive package of operation manuals and remote technical instruction to help beginner investments run smoothly and profitably from day one.
[SEO Image: Production floor displaying a comprehensive batch layout of roll formers finalized for global export execution]
| Technical parameters | Standard Performance Specifications |
|---|---|
| Applicable Coil Types | PPGI, PPGL, Galvanized Coils, Aluminum Sheets |
| Material Sheet Thickness / Width | 0.3 mm – 0.7 mm / 762 mm (Customizable based on project request) |
| Maximum Sheeting Speed | 15 – 20 meters per minute (PLC variable speed adjusted) |
| Roller Forming Stations | 16 – 20 Rows (Engineered for standard 762 trapezoidal profile geometry) |
| Roller / Solid Shaft Material | 45# Forged Steel with hard chrome layer / Solid Φ75mm shafts |
| Shearing Setup Type | Automatic Hydraulic Post-cut, Cr12 Steel Blade with Quenched Treatment |
| Automation Configuration | Full PLC Controller with Touch Screen (Siemens, Delta, or Mitsubishi) |
| Drive Power Capacity | Main Motor Power: 5.5 kW / Hydraulic Station Power: 4.0 kW |
| Voltage Configuration | 380V, 50Hz, 3 Phase (Tailored to match local factory requirements worldwide) |
