- The control system governs length, count and repeatability, not forming
- Stored recipes remove manual parameter entry from every changeover
- Cut length tolerance depends on encoder and control, not on the shear
- Sheet count control is the basis for invoicing and run confirmation
- Plain-language fault indication shortens diagnostic time substantially
- Automatic size adjustment reduces dependence on operator skill
- Control cannot compensate for an under-specified forming train

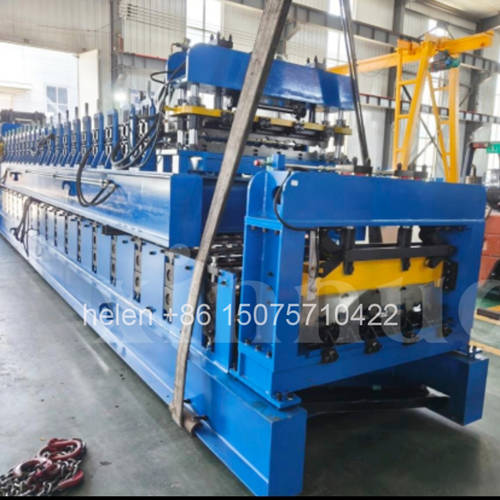

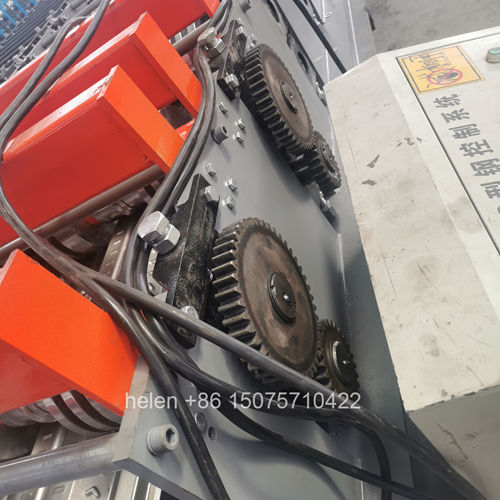

The forming train determines what section a metal floor deck roll former can produce. The control system determines whether that section is produced consistently, at the right length, in the right quantity, and at a predictable rate across shifts and across operators. It is the part of the machine that a buyer interacts with every hour of every shift, and weaknesses in it show up not as a dramatic failure but as repeated small losses: a re-entered parameter here, a mis-cut panel there, a fault that takes an hour to diagnose because the display said something unhelpful.
This page covers the control and automation side of a floor deck roll former: what the control system actually governs and what it does not, how recipe management removes a recurring source of error, how cut length and sheet count control determine whether outputs are right the first time, what useful fault indication looks like compared with a code the operator has to look up, how production data supports management of the line, what questions to ask when comparing control specifications, what the control system cannot fix no matter how good it is, and how the electrical infrastructure and protection provision around it should be arranged.
| Function | What It Governs | Effect on Output |
|---|---|---|
| Cut length | The length of each panel, set from the drawing and held by the length measurement system | Directly determines whether panels fit the bay or roof length. A length error is a scrapped panel, not a reworkable one. |
| Sheet count | How many panels are produced before the line stops | The basis for completing a run correctly. An inaccurate count means either a shortfall discovered downstream or surplus material produced and scrapped. |
| Forming and line speed | How fast the line runs, through a variable frequency drive | Sets throughput and also determines whether the section is formed well, since very heavy profiles form more consistently at a controlled speed. |
| Sequence and interlocking | The order in which the machine enables motion, shear and discharge | Prevents damage from operating the shear or the drive out of sequence, and prevents restart after a stop without a deliberate reset. |
| Fault detection and shutdown | Monitoring of drive load, motor temperature and the status of safety devices | Stops the machine before a developing problem becomes a damaged component, provided the protection settings suit the actual duty. |
| Production recording | Counts and parameters actually used in each run | Provides the record that supports invoicing, quality traceability and any future performance comparison. |
| What it does not govern | Section geometry, surface finish, forming load capacity and pooling behaviour | These are determined by the tooling and the machine structure. No control specification changes them. |
| Stored Parameter | Why Storing It Matters | Error It Removes |
|---|---|---|
| Cut length | Panels are produced to a range of lengths across a project, and re-entering the figure each time invites error | Mis-keyed lengths producing off-specification panels at the start of a run |
| Sheet count | Different orders call for different quantities, often changing several times a shift | Over-production and under-production discovered only when the run has ended |
| Line speed | Different profiles and thicknesses form well at different rates | Running a heavy profile at a rate it does not form consistently at, and slow rates on light work where speed is available |
| Gauge compensation | Length measurement is affected by the material passing through | Systematic length drift when the material changes between runs |
| Acceleration and deceleration profile | Affects how the line behaves at start and at the cut | Inconsistent first panels after each start, a common cause of scrap on short runs |
| Per-deck parameters | Where the machine has a selector, each deck has its own correct settings | Running one profile with the other profile's parameters loaded, which is not always obvious from the panel until it is measured |
| Backup of the recipe set | Recipes reside in the controller, and controllers are replaced or lose battery support eventually | Loss of the accumulated recipe library, forcing every parameter to be recovered from records or re-established by trial |
| Function | Requirement | Consequence of a Weak Specification |
|---|---|---|
| Length measurement | A reliable measurement method — typically an encoder — that reflects the material actually passing, not the drive rotation alone | Length drift appears without any apparent cause, and the panels that were produced correctly in the test run are not reproduced in production |
| Length accuracy across a run | The tolerance held on the first panel must also be held on the hundredth | Accuracy demonstrated on a short test that does not persist through a shift, which is where the real production happens |
| Count accuracy | The machine stops at the correct number, every run | Short runs leave the customer short and create a second production run for a small quantity; long runs produce panels that cannot be sold |
| Programmable length range | Lengths from short cut lengths to the longest panel the run-out supports | A narrow range forces compromise between panel design and machine capability |
| Control of the cut cycle | Cutting integrated with the line so the shear operates at the correct point in the cycle | Inconsistent cut position, producing panels that vary in length within a single run |
| Recipe recall per length | Lengths stored against the profile and the order rather than re-entered | Manual entry errors, which are a recurring cause of scrap in short-batch production |
| Fault Type | Useful Indication | Effect on Downtime |
|---|---|---|
| Overload or stall | Clear indication of which function overloaded, with the run retained so the cause can be examined | A jam is diagnosed from the display rather than by working backwards through the machine |
| Length or encoder fault | Indication that the length measurement signal is suspect, before panels are cut to the wrong length | Prevents a run of off-specification panels rather than explaining them afterwards |
| Safety circuit operated | Clear statement of which device operated, whether an emergency stop, a guard interlock or an isolator | Removes the common situation where the machine will not start and the reason is not apparent |
| Motor protection tripped | Indication of which motor and whether the trip was thermal or overload | Distinguishes a genuine overload from a nuisance trip, which changes the correct response |
| Hydraulic fault | Indication of low pressure, high temperature or a failure to reach position | Points directly to the hydraulic circuit rather than leaving the operator to guess |
| Deck or path selection error | Explicit indication of which profile path is active | On a machine with more than one deck, prevents material being routed into the wrong train |
| Plain language | Messages that say what happened, not a code the operator must look up in a manual | Codes without a readily available reference lengthen every incident, particularly outside normal shifts |
| Requirement | Why It Matters in Daily Use |
|---|---|
| Colour touchscreen with a clear layout | Operators work with the interface for a full shift. A poorly organised display produces hesitation and mis-entry, which is slow and unreliable in equal measure. |
| Profile and length selection from a list | Selecting an existing recipe rather than typing a parameter removes the most common operator error. |
| Visible current status | Which profile is active, what length is set, how many panels of the run are complete. The operator should not have to infer any of this. |
| Language options | Important where the operating crew works in a language other than the one the machine was built to, which is common on exported equipment. |
| Access control | Separating parameters that operators may change from those that should not be altered without authorisation, which prevents accidental corruption of a proven recipe. |
| Manual operation for setup | Setup, threading and fault recovery require controlled jog and single-step operation, not only automatic running. |
| Data Point | What It Enables |
|---|---|
| Panels produced per run and per shift | The basic output measure against which capacity planning and delivery commitments are managed. |
| Runing time and stopped time | Separates machine capability from machine utilisation, which is the distinction that shows whether the constraint is the machine or the way it is being used. |
| Profile and parameters used | Traceability. If a quality question arises about a delivered consignment, the parameters used to produce it can be identified. |
| Changeover frequency and duration | Quantifies the recurring cost of switching, which is the input to decisions about batching and scheduling. |
| Fault log | Repeated faults of the same type indicate a developing problem rather than a series of unrelated incidents. |
| Material consumption against panels produced | Reconciles coil purchased against panels sold and reveals unexplained losses, whether trim, scrap or miscounting. |
| Retention of records | A record that is not kept is not available. Storing run data outside the controller protects against the controller itself being replaced. |
| Question | What a Serious Answer Contains |
|---|---|
| How is length measured? | A specific answer about the measurement method and its location on the line, not a general assurance of accuracy. |
| How many recipes can be stored? | A number sufficient to cover the profiles, lengths and thicknesses actually produced, with a realistic assessment of how quickly that number will be reached. |
| What happens if the controller is replaced? | A route to restoring the recipe library, since losing accumulated parameters is a real operational setback. |
| What does a fault message say? | An example of an actual message. A demonstration is more informative than a description. |
| Can the display language be changed? | A definite answer, since this matters to whoever operates the machine rather than to whoever buys it. |
| Is automatic size adjustment available? | Whether computer-controlled automatic adjustment is offered for high-volume production, where it reduces operator skill requirements and shortens changeover. |
| What protection is provided on the main motor? | Overload and thermal protection with settings matched to the actual duty, not a generic setting. |
| Is run data exportable? | Whether counts, run times and faults can be taken off the machine for analysis, or whether they exist only on the display. |
| Problem | Why No Control Specification Solves It |
|---|---|
| Pooling and jamming | Material jamming in the forming train is a consequence of row count, drive force and the mechanical anti-pooling provision. The control system can stop the machine when it happens; it cannot prevent it. |
| Under-formed or distorted sections | Section geometry is set by the roller tooling and by whether the frame and shaft hold the roll gap under load. Measuring and reporting the outcome does not change it. |
| Surface marking | Caused by wheel and guide condition and contact pressure. Detection is possible; correction is a tooling and maintenance matter. |
| Insufficient forming capability for the gauge | A machine configured below the required thickness range cannot be brought up to it by control. This is why the thickness range must be stated at order. |
| Cut edge condition | Determined by blade condition, blade clearance and shear force, all of which are mechanical. |
| Changeover time | Recipes shorten the parameter element of a changeover, but the mechanical work of repositioning guides and confirming the first panel remains. |
| The honest position | Control makes a capable machine predictable and a predictable machine easier to manage. It does not make an incapable machine capable. |
| Provision | Requirement |
|---|---|
| Supply specification | 380 V / 50 Hz / 3-phase is the standard, with alternative voltages and frequencies by destination. Confirmed before the order is placed, not at commissioning. |
| Supply capacity | Sized against the main motor, hydraulic power pack and control system together, with allowance for starting current rather than running current alone. |
| Protection and isolation | Dedicated protection for the machine, a lockable isolator within sight and reach of the operating position, and separate isolation for the hydraulic power pack. |
| Earthing and bonding | Frame, decoiler and control cabinet arranged on a common bonded earth to the local standard. |
| Variable frequency drive | Fitted for speed control, with attention to earthing and screening practice since drives are a source of electromagnetic disturbance. |
| Cabinet environment | Enclosure rated for the site conditions, and positioned where it is not exposed to dust, heat or impact around the forming line. |
| Schematics and records | Electrical schematics supplied with the machine, since fault finding without them depends on tracing wiring on the equipment. |
| Information | Why It Determines the Control Specification |
|---|---|
| Number of profiles and lengths produced | Determines how many recipes are needed and how often the parameters change. |
| Order pattern and changeover frequency | Where changeovers are frequent, recipe management and automatic adjustment deliver the greatest benefit. |
| Maximum and range of panel lengths | Sets the required programmable length range and the run-out provision the control must match. |
| Required length tolerance | Confirms whether the standard control specification meets the tolerance the market demands. |
| Material thickness range | Determines the acceleration and speed parameters and the protection settings required. |
| Operator language and skill level | Affects display language, interface simplicity and whether automatic adjustment is justified. |
| Whether production data is needed | Determines whether reporting and export provision should be specified. |
| Electrical supply available on site | Voltage, frequency, phase and capacity must match the machine specification before manufacture. |
| Site environment | Temperature, dust and humidity affect cabinet and drive specification. |
| Destination market documentation | Documentation language and conformity documentation differ by market and are supplied with the control system. |
| Parameter | Standard Range |
|---|---|
| Control platform | PLC with colour touchscreen HMI |
| Recipe storage | Stored recipe banks covering profiles, lengths, thicknesses and speed settings, with the library backed up outside the controller |
| Cut length control | Programmable length across the full range produced, held to ±1.5 mm on the first panel and maintained across the run |
| Sheet count control | Set count with automatic stop at the end of the run, used as the basis for invoicing and run confirmation |
| Speed control | Variable frequency drive, so the rate can be matched to the profile and the gauge |
| Profile selection | Explicit indication of the active profile path where the machine has more than one deck |
| Fault display | Plain-language messages identifying the function that faulted, with a retained run state for diagnosis |
| Protection | Overload and thermal protection on the main motor and hydraulic pump motor, with settings matched to actual duty |
| Safety integration | Emergency stop and guard interlock circuits integrated with restart prevention |
| Manual operation | Jog and single-step provision for setup, threading and fault recovery |
| Access control | Separation of operator-adjustable parameters from those requiring authorisation |
| Reporting | Run counts, run and stopped time, parameters used, changeover frequency and fault log, exportable for analysis |
| Optional automation | Computer-controlled automatic size adjustment for high-volume production, reducing operator skill requirements and shortening changeover |
| Electrical supply | 380 V / 50 Hz / 3-phase standard; alternative voltages and frequencies by destination |
| Protection and isolation | Dedicated protection, lockable isolator at the operating position, and separate isolation for the hydraulic power pack |
| Documentation | Electrical schematic, hydraulic schematic, control manual, parts list and a record of the parameters established at commissioning |
| Certification | CE marking and ISO 9001:2015 compliant manufacturing, with destination-market documentation arranged as required |

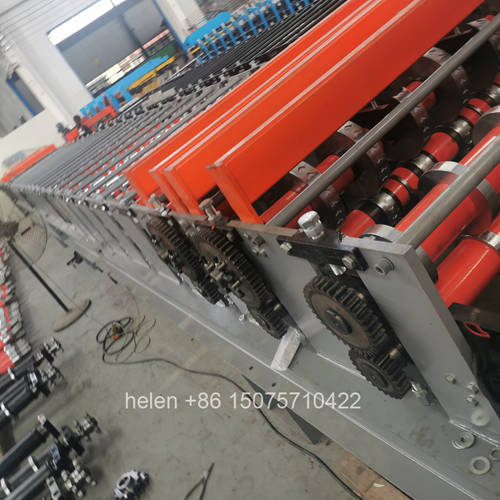

Coil loading on the decoiler, strip entry through the guide, progressive forming across the roll train, sizing over the final passes, length measurement by the encoder, cutting at the programmed length, count monitoring by the control system, and discharge to the run-out position follow the established sequence, with the parameters recalled from the stored recipe for the profile being produced.
