Factory direct supplier of double layer roof sheet making machines
One machine produces corrugated and IBR roof sheets alternately
PLC automation with touchscreen for length and batch production control

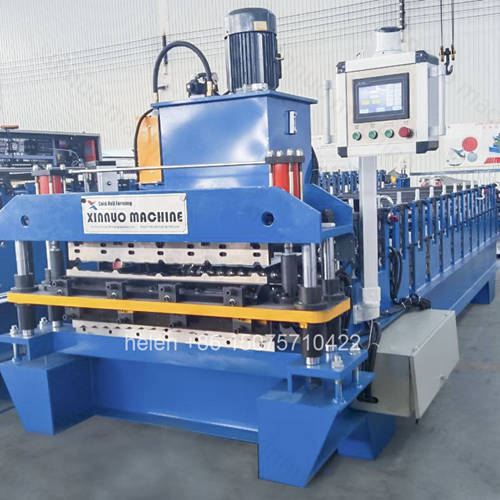

Hydraulic flying post shear cuts sheets at preset length on the fly
Chrome plated rollers prevent coating damage on galvanized steel strip
Complete roof sheet line with uncoiler guide shear and discharge conveyor
Twenty five to thirty five day production lead time from deposit receipt

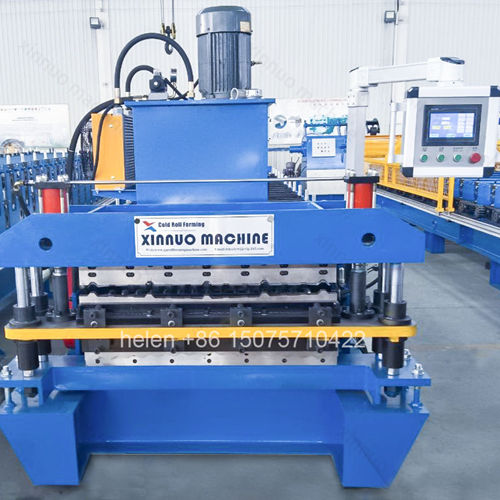

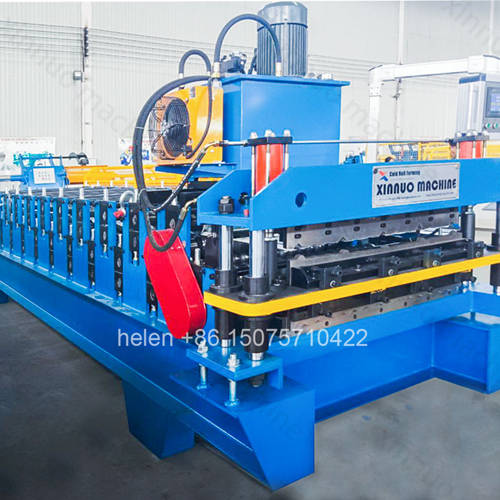

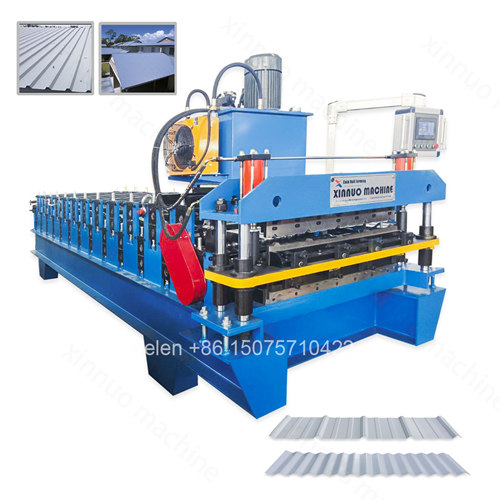

As a specialized factory supplier of double layer roof sheet making machines, we provide complete turnkey production equipment that enables roofing sheet manufacturers to produce both corrugated wave and IBR trapezoidal roof sheets from a single integrated machine platform. Our double layer machines house two independent roller forming decks within one heavy welded structural steel frame — the lower deck configured for traditional corrugated roof sheet production and the upper deck tooled for IBR roof sheet production. We supply the complete production line package including hydraulic decoiler, entry guide station, main double layer forming unit with flying hydraulic post-cut shear, PLC digital control system, and discharge roller conveyor. Every machine undergoes rigorous three-phase factory testing before export packaging to ensure reliable performance from day one of production at your facility.
| Supplied Product Detail | Corrugated Roof Sheet Making | IBR Roof Sheet Making |
|---|---|---|
| Roof Sheet Profile Type | Continuous sinusoidal wave, uniform curvature | Deep trapezoidal ribs, flat valley pans |
| Effective Sheet Width Range | 660mm to 1000mm coverage | 762mm to 1100mm coverage |
| Profile Height | 12–18mm wave amplitude crest-to-trough | 28–43mm rib crown above valley floor |
| Waves or Ribs per Sheet | 5, 7, 9, or 11 wave repetitions | 4, 5, or 6 structural ribs |
| Sheet Length Making Range | 1.0m to 14.0m per sheet | 1.0m to 14.0m per sheet |
| Side Lap Configuration | 1.5-wave minimum weathertight overlap | Single overlap, optional anti-capillary groove |
| Purlin Span Capability | Up to 2.5m between supports | Up to 4.5m between supports |
| Supplied Item | Quantity | Description |
|---|---|---|
| Double Layer Main Machine Body | 1 unit | Complete upper IBR and lower corrugated roller decks on single welded frame with chain drive, hydraulic shear, and PLC cabinet |
| Hydraulic Coil Uncoiler | 1 unit | 5-ton or 8-ton capacity with hydraulic expanding mandrel and adjustable brake system for controlled strip pay-off |
| Entry Guide and Pre-Shear | 1 set | Adjustable side guide rollers with integrated manual guillotine blade for squaring the coil leading edge |

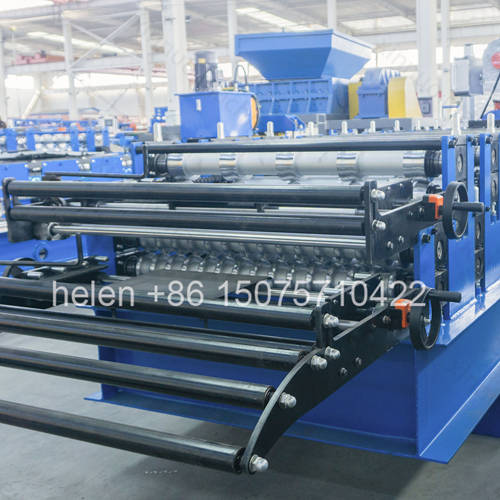

| Run-Out Roller Conveyor | 1 unit | 3–5 meter free-roller receiving table with height-adjustable legs for finished sheet collection and stacking |
| PLC Touchscreen Control | 1 set | 7-inch or 10-inch color HMI with multi-language interface, recipe memory, and fault diagnostic display |
| Spare Wearing Parts Kit | 1 kit | Cr12MoV shear blade, 20 chain master links, 2 limit switches, 2 emergency stop buttons, hydraulic seal set — no extra charge |
| Technical Documentation | 1 set | English operation manual, mechanical drawings, electrical schematic, PLC parameter guide, and lubrication schedule chart |
| Operator Tool Kit | 1 set | Basic hand tools for routine roller gap adjustment, chain tensioning, and daily preventive maintenance procedures |
| Quality Standard | Corrugated Deck Tooling | IBR Deck Tooling |
|---|---|---|
| Forming Station Count | 13–16 roller pairs | 14–18 roller pairs |
| Roller Material | 45# forged steel, ultrasonic inspected before CNC | 45# forged steel, ultrasonic inspected before CNC |
| CNC Machining Tolerance | Sinusoidal contour turning, ±0.05mm accuracy | Trapezoidal contour turning, ±0.05mm accuracy |
| Heat Treatment | Gas carburizing furnace, oil quench, HRC 58–62 surface | Gas carburizing furnace, oil quench, HRC 58–62 surface |
| Chrome Surface Finish | Industrial hard chrome, 0.05mm minimum, mirror polish | Industrial hard chrome, 0.05mm minimum, mirror polish |
| Shaft Engineering | Φ75–Φ80mm 40Cr alloy, h7 tolerance, sprocket keyway | Φ75–Φ80mm 40Cr alloy, h7 tolerance, sprocket keyway |
| Bearing Assembly | Split pillow block, spherical roller, Zerk grease fitting | Split pillow block, spherical roller, Zerk grease fitting |
| System | Supplier Build Standard |
|---|---|
| Welded Main Frame | Heavy channel steel beams and cross-braced 300H–400H H-beam columns. Post-weld thermal stress-relief annealing. Bearing pads precision machined after heat treatment for exact shaft parallelism through all roller stations |
| Motor and Gearbox | 5.5kW or 7.5kW AC motor (4-pole, IP54) with worm-type dual-output reducer, oil-bath lubrication. Ratios 1:40 or 1:59. Each output drives one deck through independent heavy-duty double-row chain circuits with hardened sprockets and individual tension adjustment |
| Hydraulic Cut-Off System | 4.0kW gear pump motor, 80L reservoir with filtration and temperature gauge. Flying shear on linear guide rails with pneumatic clamp. Cr12MoV blade set vacuum heat treated to HRC 60–64, profile-ground to match sheet cross-section |
| PLC Control System | Siemens S7-1200, Delta DVP, or Mitsubishi FX3U PLC with VFD inverter for stepless speed control. 7-inch or 10-inch color touchscreen HMI, multi-language, recipe memory. Rotary encoder on final shaft with digital feedback to PLC auto-correction. Three emergency stop pushbuttons along the line |
| Specification | Supplier Data |
|---|---|
| Compatible Coil Materials | Hot-dip galvanized (Z60–Z275), PPGI (PE/SMP/PVDF), aluzinc/Galvalume (AZ150–AZ200), cold-rolled steel, aluminum (1100/3003) |
| Sheet Gauge Range | 0.25mm to 0.80mm (gauge 30 through gauge 20) |
| Yield Strength Limit | 200 MPa to 400 MPa |
| Production Line Speed | 10–18 m/min, infinitely variable via VFD |
| Sheet Cut Length Accuracy | ±1.0mm via encoder feedback to PLC auto-correction |
| Profile Changeover | Manual diverter plate; corrugated to IBR in 10–15 minutes |
| Electrical Supply | 380V 50Hz 3-phase standard; custom voltage/frequency per destination |
| Total Motor Power | Approximately 10–12 kW (drive 5.5/7.5kW + pump 4.0kW) |
| Machine Dimensions | Approx. 7.0–8.0m × 1.4–1.6m × 1.7–2.0m per configuration |
| Machine Net Weight | 5.0–7.5 metric tons per profile and frame spec |
| Uncoiler Capacity | 5 metric tons standard, 8 metric tons heavy duty |
| Coil Inner Bore | Φ508mm standard; Φ610mm with adapter sleeve |
| Commercial Term | Supplier Standard Arrangement |
|---|---|
| Price Basis | FOB Tianjin or Qingdao port, China. CIF to destination port available upon request with freight cost quotation |
| Payment Method | T/T bank transfer: 30% deposit upon order, 70% balance before shipment or against scanned bill of lading copy |
| Production Lead Time | 25–35 working days from deposit receipt and signed profile approval drawings |
| Warranty Period | 12 months from bill of lading date covering manufacturing defects in materials and workmanship |
| Extended Warranty | 24-month extended coverage available for purchase at additional fee |
| On-Site Installation | Optional: factory-trained engineer travels to buyer site for machine installation, commissioning, and operator training. Buyer covers airfare, accommodation, and daily service allowance |
| After-Sales Support | Free remote technical support via WhatsApp, WeChat, or Zoom video call during warranty and beyond |
| Test Phase | Duration | Verification Activity |
|---|---|---|
| Dimensional Inspection | 4–6 hours | All roller gaps measured with calibrated feeler gauges against engineering tolerances. Shaft runout checked with dial indicators at every bearing. Frame alignment confirmed with precision levels and laser instruments |
| No-Load Dry Run | Minimum 4 hours | Machine operates at maximum rated speed without material. Bearing temperatures logged every 30 minutes. Chain engagement inspected visually and audibly. All PLC functions validated end-to-end |
| Live Production Trial | 3–5 hours | Factory technicians load actual galvanized coil and make 50 corrugated plus 50 IBR sheets. Every 10th sheet measured for length, profile geometry, and cut edge quality with calibrated digital instruments. Zero out-of-tolerance results required for approval |
| Step | Action | Timeline |
|---|---|---|
| 1 | Send your roof sheet profile specifications via email or inquiry form — include required sheet widths, coil thickness range, and target daily output | Day 1 |
| 2 | Receive formal quotation with machine specification, FOB price, delivery lead time, and payment terms | Within 24–48 hours |
| 3 | Confirm order and sign proforma invoice; transfer 30% deposit via T/T bank wire | As agreed |
| 4 | Engineering team prepares profile confirmation drawings for your approval before manufacturing begins | 3–5 working days |
| 5 | Machine fabrication, assembly, testing, and trial production run at factory | 25–35 working days |
| 6 | Factory acceptance: photos and videos of completed machine sent for your review before packaging | 1–2 working days |
| 7 | Balance payment processed; machine packed and loaded into container for export shipment | 3–5 working days |
| Supplier Advantage | What This Means for Your Roof Sheet Business |
|---|---|
| Direct Factory Pricing | No intermediary or trading company markup — you pay the manufacturer's price for your roof sheet making machine |
| Custom Profile Engineering | Rollers are CNC-machined to your exact roof sheet profile specifications, not a one-size-fits-all standard design |
| Pre-Shipment Testing | Every machine produces 100 actual roof sheets (50 corrugated + 50 IBR) in factory trials before export packaging |
| Single-Container Shipping | Double layer design fits in one container instead of two, cutting ocean freight cost by approximately 40–50% |
| Spare Parts Inclusion | Starter spare parts kit included free: shear blade, chain links, limit switches, emergency stops, hydraulic seals |
| Remote Technical Support | Free video-call support via WhatsApp, WeChat, or Zoom for troubleshooting, maintenance guidance, and operator training |
| Global Export Experience | Machines shipped to Africa, South Asia, Southeast Asia, Middle East, Latin America, and Oceania markets |
| Option | Description |
|---|---|
| Servo Motor Drive | Programmable servo replaces standard AC motor for precision acceleration, enhanced sheet length accuracy, and energy savings during intermittent production |
| Automatic Sheet Stacker | Motorized stacking arm transfers finished roof sheets from discharge conveyor to aligned pallet bundles, eliminating manual handling |
| Electric Coil Loading Cart | Battery-powered trolley on floor rails with hydraulic lift; transports coils up to 10 tons without crane dependency |
| IoT Remote Monitor | 4G module transmits real-time production data — daily output, motor hours, fault alerts, maintenance reminders — to smartphone or web dashboard |
| Custom Embossing Roller | Engraved forming roller permanently stamps brand name, logo, or batch code into each roof sheet during production |
| Stainless Steel Rollers | Complete 304 or 316L stainless roller set for roof sheet production in food-grade, pharmaceutical, chemical, or coastal environments |
Hebei Xinnuo is a professional cold roll forming machinery manufacturer with 20+ years of experience. We specialize in C/Z purlin machines, roof panel roll formers, floor deck machines, and custom profile solutions — exported to 50+ countries worldwide.
